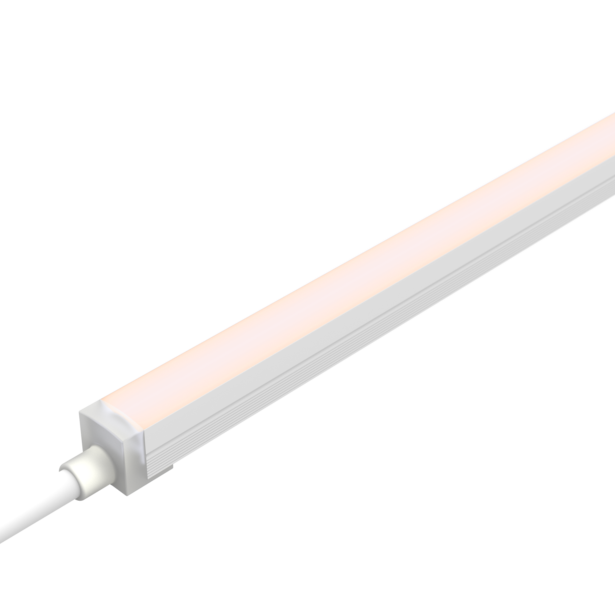

Endurawave Narrow Color Tuning
Endurawave revolutionizes flexibility with its rigid PCB encased in a protective shell, allowing seamless bending and twisting without compromising LEDs or components. Reinforced by durable wires, it ensures long daisy-chain connections with superior tensile strength and 3D bending capabilities.
• Strong Tensile Strength
• 3D Bending Flexibility
• Dimmable with Universal Power Supplies
• 50,000 Hour Life
• Silicone Jacket with IP67 or IP68 Options
• UL-Listed for Indoor and Outdoor Use
• For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 1800K - 3500K / 2200K - 4000K |
| Input Voltage | 24V DC |
| Lumens per Foot | 191 - 226 lm/ft |
| Watts per Foot | 4.4 W (2.2W per channel) |
| Indoor/Outdoor | Indoor/Outdoor |
| Beam Angle | 115° |
| CRI | 90+ |
| IP Rating | IP67/IP68 |
| Viewing Angle | Narrow |
| Life Expectancy | 50,000 Hour Life |
| Feed Orientation | Bottom Feed, End Feed, Side Right, Side Left |
| Bend Direction | 3D Bend (Horizontal and Vertical) |

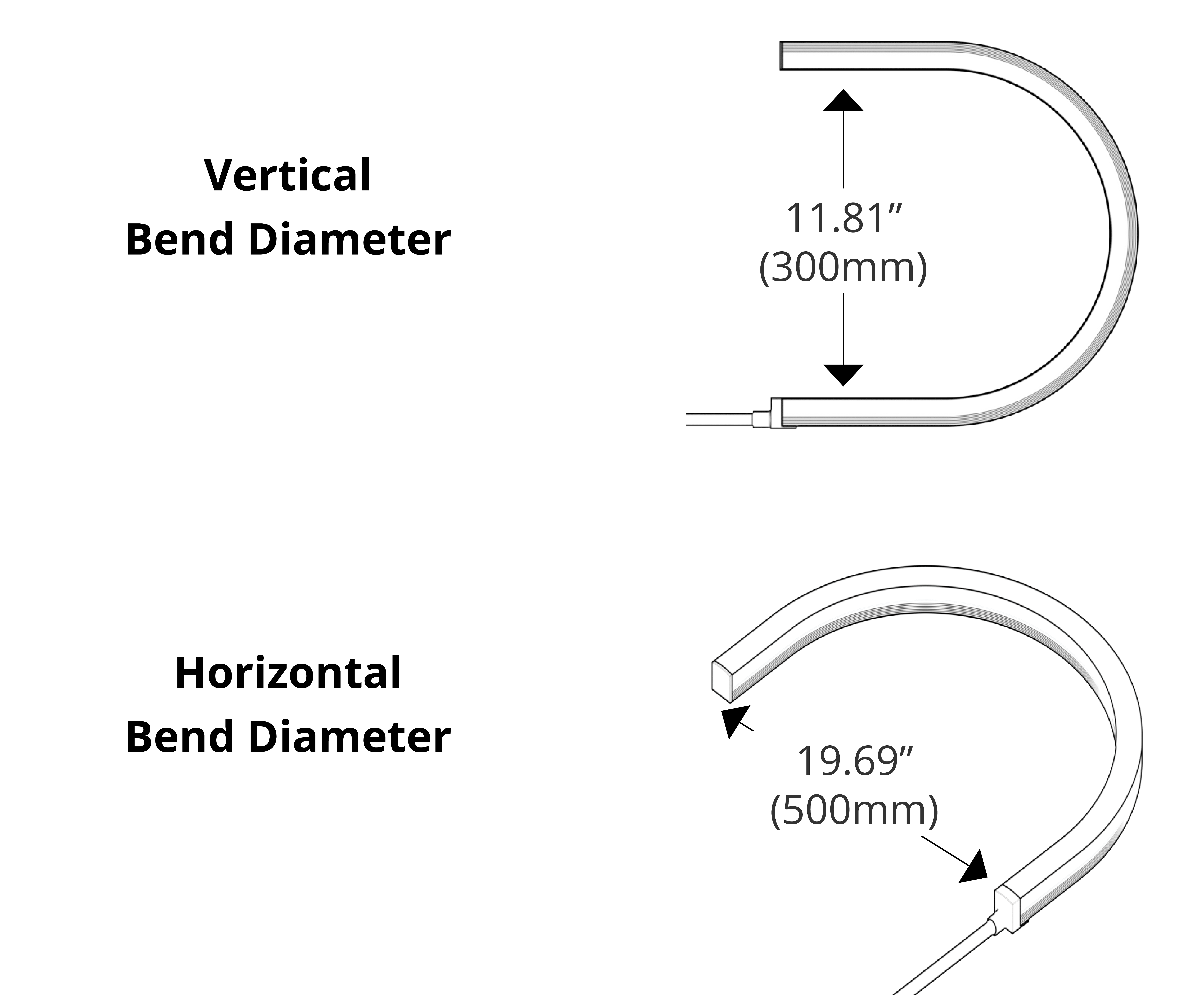

| Bend Diameter | Vertical = 11.81" (300mm) / Horizontal = 19.69" (500mm) |
| Dimming Options | 0-10V, DMX |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- ENN-CT — Endurawave Narrow Color Tuning
- 1835K — 1800K - 3500K
- 2240K — 2200K - 4000K
- 24V — 24V DC
- E — End feed
- B — Bottom feed
- SL — Side Left
- SR — Side Right
- 67 — IP67
- 68 — IP68
- 1 — 1ft
- 3 — 3ft
- 6 — 6ft
- 10 — 10ft
- xx — Fixture Length
Mounting Options
Stainless Steel Flexible Channel
Aluminum Serrated Recessed Channel
Aluminum Serrated Channel
Aluminum Serrated Clip
Compatible Power Supplies
Compatible Controls & Dimmers
DMX 4 Channel Decoder
8Bit/16Bit DMX Decoder
DMX 2 Channel 4 Zone In-Wall Controller
DMX 5 Channel 1 Zone In-Wall Controller
RF 2 Channel 1 Zone Tabletop Controller
RF 2 Channel 4 Zone Handheld Controller
RF/Wifi Controller for RF Receivers
RF 2 Channel 1 Zone In-Wall Button Controller
RF 2 Channel 1 Zone In-Wall Knob Controller
DMX 4 Channel Weatherproof Decoder
DMX 5 Channel Decoder
