RGBCT (Indoor)

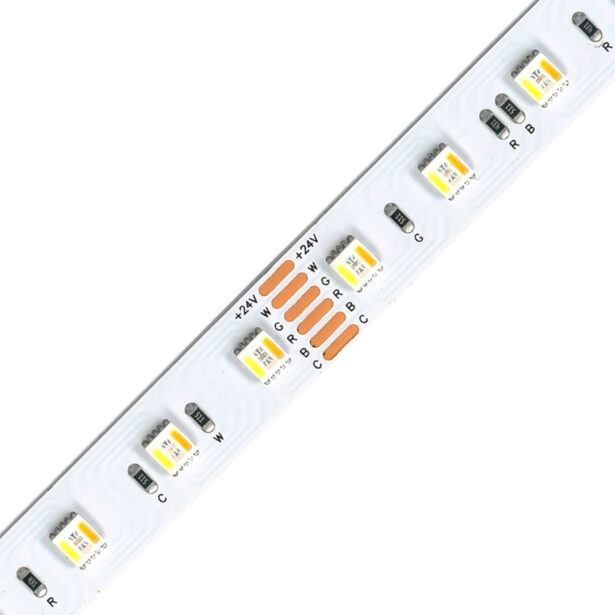

Color Changing + Color Tuning Linear LED Strip Tape
RGBCT is perfect for the project needing ultimate flexibility. This product combines RGB + Color Tuning all in a single node, allowing the user to access nearly limitless color combinations or Kelvin temperature.
- Ability to Mix Kelvin Temperatures
- Dimmable
- 50,000 Hour Life
- 5-Year Warranty
- UL-listed for Indoor Use
- 3M™ Industrial Adhesive Backing
- For Use with Electronic Power Supplies
Downloads
Technical Specifications
| Series | RGBCT |
| Temp Color | 2300K-6500K |
| Dimming Protocol | RF, Bluetooth, DMX 512 |
| Indoor/Outdoor | Indoor |
| Input Voltage | 24V DC |
| Watts per Foot | 4W |
| Optic | 120° |
| Max Run Length | 25ft |
| CRI | 90+ |
| Operating Temp. | -40°F (-40°C) to 149°F (65°C) |
| Cut Intervals | 3.94" (100.0mm) |
| Dimensions | 0.51" (13mm) x 0.06" (2mm) |
| Diode | 5050 |
| Field Cuttable | Yes |
| Lumens per Foot | 340 lm |
| Lumens per Watt | 85 lm/W |
Your Product Code
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
1. RGBCT
- RGBCT — RGBCT
2. 24V
- 24V — 24V
Standards and Certifications
Related Projects
Related Products
Compatible Channels
CH-602
0.688" × 0.25" | Bendable
CH-031-C
1.438" × 1.125" | Recessed
CH-409
0.688" × 0.5" | Surface
CH-211
0.75" × 0.5" | Surface / Suspended / Adjustable
CH-607
0.75" × 0.75" | Angled
CH-011
0.75" × 0.813" | Surface
CH-222
0.938" × 0.563" | Surface / Suspended / Adjustable
CH-014-C
0.938" × 0.375" | Surface / Adjustable
CH-016
1.188" × 1.188" | Angled
CH-228-N
1.375" × 1" | Surface / Suspended / Adjustable
CH-217-N
1.938" × 1.5" | Recessed
CH-218-N
1.375" × 1.5" | Surface / Suspended / Adjustable
CH-219-N
1.625" × 1.375" | Wall Mounted
CH-045-R-E
2.56" × 1.38" | Recessed
CH-046-R-E
2" × 1.375" | Surface / Suspended
CH-047-R1-F
3.563" × 1.375" | Recessed
CH-048-R1-F
2.938" × 1.375" | Surface / Suspended
CH-223-M
1" × 2.75" | Recessed / Wall Mounted
CH-241-M
0.938" × 3.25" | Wall Mounted
CH-242-M
1.563" × 3.25" | Wall Mounted
CH-291
3.563" × 1.5" | Suspended Aluminum Channel
CH-0003
2.42" × 0.55" | Trimless & Mud-In
CH-0004
1.60" × 2.01" | Trimless & Mud-In
CH-0005
2.48" × 1.03" | Trimless & Mud-In
CH-0006
2.40" × 1.46" | Trimless & Mud-In
CH-0007
3.72" × 1.39" | Trimless & Mud-In
CH-0008
1.38" × 3.82" | Trimless & Mud-In
CH-0009
2.57" × 1.10" | Trimless & Mud-In
CH-0011
0.72" × 3.78" | Trimless & Mud-In
CH-0012
0.72" × 5.26" | Trimless & Mud-In
CH-0013
0.72" × 4.68" | Trimless & Mud-In
CH-514
0.75" × 0.188" | Surface
CH-027
0.813" × 1.063" | Surface / Suspended
Compatible Power Supplies
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
96 Watt - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
