UV Blacklight

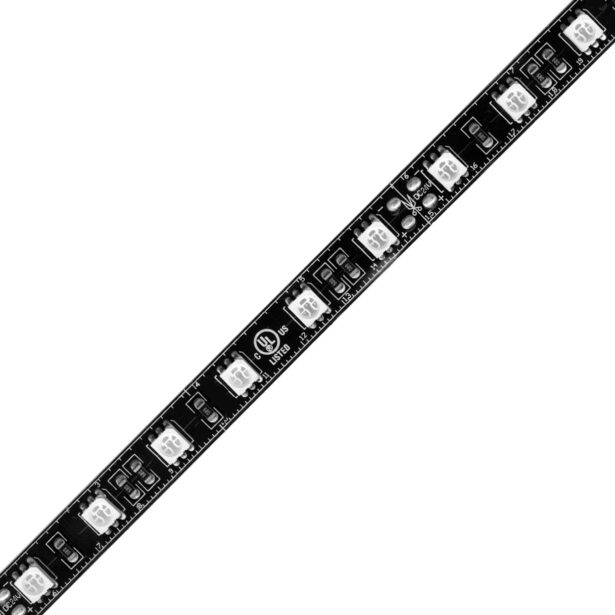

H400-UV-WR-24V | Rubber Coated Blacklight Linear LED Strip Tape
400 nanometer blacklight illuminates phospher within a multitude of surfaces and liquids. This product can be used in a wide variety of applications including automotive, industrial, hospitality, medical, and entertainment.
- Dimmable
- 50,000 Hour Life
- UL-Listed for Indoor and Outdoor Use
- 3M™ Industrial Adhesive Backing
- For Use with Electronic Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 400nm |
| Input Voltage | 24V DC |
| Watts per Foot | 2.3W |
| Beam Spread | 120° |
| Max Run Length | Unlimited, Power Every 30ft |
| Production Intervals | 3.94" (100mm) |
| End Cap Dimensions | 0.56” (15mm) × 0.38” (9mm) |
| Tape Dimensions | 0.5” (13mm) × 0.25” (6mm) |
| Diode | 5050 |
| Dimming Protocol | PWM, TRIAC, 0-10V, DMX 512 |
| Operating Temperature | -40°F (-40°C) to 149°F (65°C) |
| Field Cuttable | No |
| Life Expectancy | 50,000 Hour Life |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. H400
- H400 — H400
2. UV WR 24V
- UV WR 24V — UV WR 24V
Standards and Certifications
Power/Connect Options
2 Wire LED Leads and Connectors
For Single Color LED Products
TB1 Terminal Block Connector
Connects fixtures with separation.
Model
TB1
Material
Nylon
Length
0.63" (15.9mm)
Width
0.63" (15.9mm)
Height
0.63" (15.9mm)
SJB1S-TB1 Terminal Block Connector
Connects fixtures with separation inside a clean enclosure.
Model
SJB1S-TB1
Material
Nylon
Rating
10 Amp, 250 Volt
Length
1.68" (42.6mm)
Width
0.75" (19mm)
Height
0.47" (12mm)
Finish
White Matte
Compatible Channels
CH-202
0.688" × 0.625" | Surface / Adjustable
CH-409
0.688" × 0.5" | Surface
CH-211
0.75" × 0.5" | Surface / Suspended / Adjustable
CH-607
0.75" × 0.75" | Angled
CH-011
0.75" × 0.813" | Surface
CH-222
0.938" × 0.563" | Surface / Suspended / Adjustable
CH-014-C
0.938" × 0.375" | Surface / Adjustable
CH-016
1.188" × 1.188" | Angled
CH-228-N
1.375" × 1" | Surface / Suspended / Adjustable
CH-217-N
1.938" × 1.5" | Recessed
CH-218-N
1.375" × 1.5" | Surface / Suspended / Adjustable
CH-219-N
1.625" × 1.375" | Wall Mounted
CH-045-R-E
2.56" × 1.38" | Recessed
CH-046-R-E
2" × 1.375" | Surface / Suspended
CH-047-R1-F
3.563" × 1.375" | Recessed
CH-048-R1-F
2.938" × 1.375" | Surface / Suspended
CH-291
3.563" × 1.5" | Suspended Aluminum Channel
CH-514
0.75" × 0.188" | Surface
CH-027
0.813" × 1.063" | Surface / Suspended
Compatible Power Supplies
ULV96
96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
Discontinued 96 Watt - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
25HE-24V
25 Watt - 24 Volt Universal Dimming
50HE-24V
50 Watt - 24 Volt Universal Dimming Class 2 Power Supply
Compatible Controls & Dimmers
Single Color 1 Zone In-Wall Controller
RFC-A-SC-1ZD-IW-BT-W
Single Color 1 Zone Tabletop Controller
RFC-A-SC-1Z-TT-BT-B
Single Color 4 Zone Handheld Controller
RFC-A-SC-4Z-HH-BT-B
Single Color 1 Zone Handheld Controller
RFC-A-SC-1Z-HH-BT
RF 4 Channel Receiver
RFR-A-4C-5A
RF 1 Channel Receiver
RFR-A-1C-8A
Single Color 0-10V 1 Channel Dimmer
0-10V-1CH
Single Color 0-10V 4 Channel Dimmer
0-10V-4CH
Single Color DALI 1 Channel Dimmer
DALI-1CH
RF/Wifi Controller for RF Receivers
RFC-A-WIFI
24V Low Voltage Dimmers
Accessory Dimmers for 24V Low Voltage Linear Products
