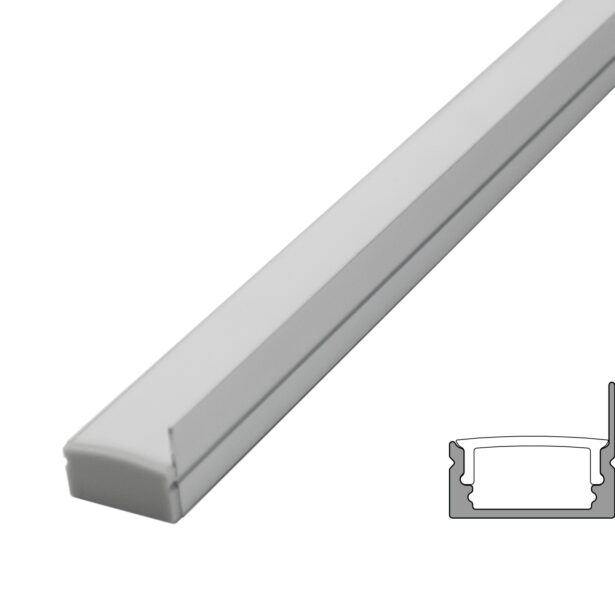

CH-506-A
0.688" × 0.563" | Surface / Adjustable
Store in a Temperature-Controlled Environment.
- Available in 2 Meter Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Spec Sheet
Spec SheetInstallation Instructions
Warranty
IES Files
CAD Files
Photometric Files
Additional Files
Technical Specifications
| Length | 78.74" (2m) |
| Overall Width | 0.67" (17.1mm) |
| Internal Width | 0.48" (12.2mm) |
| Height | 0.31" (7.9mm) | 0.55" (13.9mm) |
| Lens Color | Clear, Frosted, White |
| Finish | Anodized Matte |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- CH506A — CH-506-A
2. Length
- 2 — 2 Meter
3. Lens
- CL — Clear
- FR — Frosted
- WH — white
4. Mounting
- CP — Mounting Clips
- PV — Pivot
5. End Cap
- EC — End Caps (Included)
