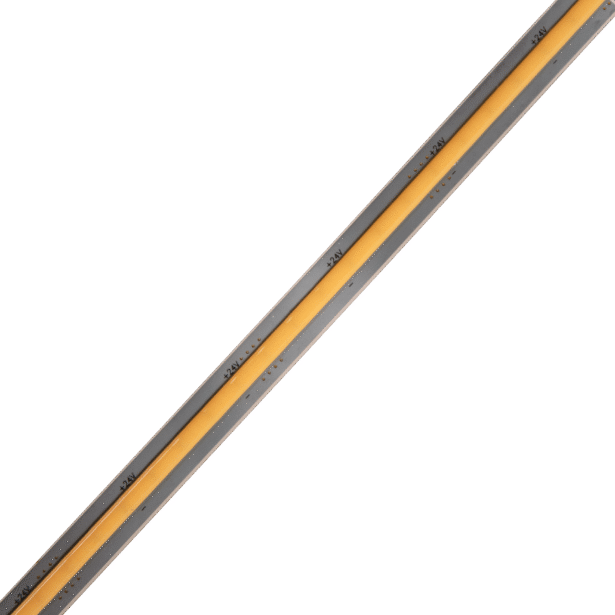

COB Static White
COB-SW | White Light Linear COB
Kelvix COB provides the easiest tape install of all our products. With nearly unlimited cut length and optional connectors, pure dot free illumination has never been easier to install for any project.
- Dot Free Performance
- Free Cutting
- Create a Custom Fixture with Kelvix Channels
- 5-Year Warranty
- UL-Listed
- 3M™ Industrial Adhesive Backing
- For Use with 24V Power Supplies
- Dimmable Using Kelvix Power Supplies
Downloads
Technical Specifications
| Category | Linear LED |
| Series | COB |
| Family | Static White |
| Watts Per Foot | 2.1w/ft - 4.5w/ft |
| Environment | IP20, IP67 |
| CRI | 90+ |
| CCT Options | 2400K, 2700K, 3000K, 3500K, 4000K |
| Input Voltage | 24V DC |

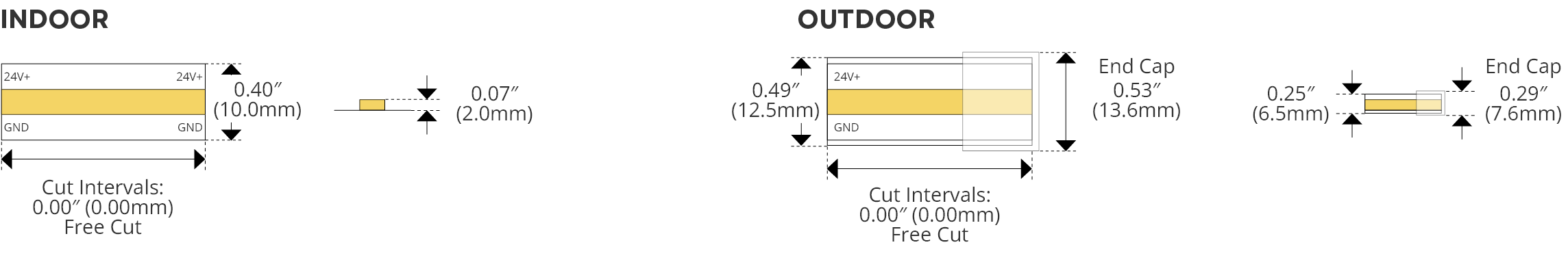

| Width | 0.40in (10.0mm) |
| Height | 0.07in (1.8mm) |
| Width w/ Outdoor Jacket | 0.49in (12.5mm) |
| Height w/ Outdoor Jacket | 0.18in (4.6mm) |
| Max Run Length | 150lm/ft: 44ft, 300lm/ft: 24ft |
| Cut Intervals | 0.00in (0.00mm) Free Cut |
| Beam Angle | 137-144 |
| Life Expectancy | 50,000 Hour Life (L70) |
| Storage Temp. | -4°F (-20°C) to 158°F (70°C) |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
| Dimming Options | 0–10V, Triac, and ELV |
| Output (lm/ft) | 150 (lm/ft) | 3000 (lm/ft) |
|---|---|---|
| 2200K | 110 | 220 |
| 2400K | 123 | 258 |
| 2700K | 132 | 267 |
| 3000K | 139 | 289 |
| 3500K | 143 | 293 |
| 4000K | 139 | 319 |
| Wattage (per ft) | 2 | 4.5 |
| Efficiency (lm/W) | 67 | 67 |
| Max Run Length (ft) | 44 | 21 |
| Length (ft) | Wattage (W) |
|---|---|
| 1 | 1.3 |
| 2 | 3.7 |
| 3 | 6.0 |
| 4 | 8.2 |
| 5 | 10.5 |
| 6 | 12.7 |
| 7 | 14.9 |
| 8 | 17.0 |
| 9 | 19.1 |
| 10 | 21.2 |
| 11 | 23.3 |
| 12 | 25.3 |
| 13 | 27.3 |
| 14 | 29.2 |
| 15 | 31.1 |
| 16 | 33.0 |
| 17 | 34.9 |
| 18 | 36.7 |
| 19 | 38.5 |
| 20 | 40.2 |
| 21 | 42.0 |
| 22 | 43.7 |
| 23 | 45.3 |
| 24 | 47.0 |
| 25 | 48.6 |
| 26 | 50.1 |
| 27 | 51.6 |
| 28 | 53.2 |
| 29 | 54.6 |
| 30 | 56.1 |
| 31 | 57.5 |
| 32 | 58.8 |
| 33 | 60.2 |
| 34 | 61.5 |
| 35 | 62.8 |
| 36 | 64.0 |
| 37 | 65.2 |
| 38 | 66.4 |
| 39 | 67.5 |
| 40 | 68.7 |
| 41 | 69.7 |
| 42 | 70.8 |
| 43 | 71.8 |
| 44 | 72.8 |
| 45 | 73.7 |
| 46 | 74.7 |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- COB — Cob
2. Family
- WL — White Light
3. Environment
- I — Indoor
- O — Outdoor
4. Output
- 150 — 150 lm/ft
- 300 — 300 lm/ft
5. CCT
- 22K — 2200K
- 24K — 2400K
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
6. Voltage
- 24V — 24 VDC
Standards and Certifications
Compatible Channels
CH-0001
2.311" × 0.55" | Trimless & Mud-In
CH-0003
2.42" × 0.55" | Trimless & Mud-In
CH-0004
1.60" × 2.01" | Trimless & Mud-In
CH-0005
2.48" × 1.03" | Trimless & Mud-In
CH-0006
2.40" × 1.46" | Trimless & Mud-In
CH-0007
3.72" × 1.39" | Trimless & Mud-In
CH-0008
1.38" × 3.82" | Trimless & Mud-In
CH-0009
2.57" × 1.10" | Trimless & Mud-In
CH-0011
0.72" × 3.78" | Trimless & Mud-In
CH-0012
0.72" × 5.26" | Trimless & Mud-In
CH-0013
0.72" × 4.68" | Trimless & Mud-In
CH-0200
0.86" × 0.51" | Floor Wall Ceiling
CH-0201
1.61" × 0.47" | Floor Wall Ceiling
CH-0202
2.44" × 0.39" | Floor Wall Ceiling
CH-0400
0.31" × 0.31" | Thin Line
CH-0401
0.47" × 0.51" | Thin Line
CH-0402
0.4" × 0.4" | Thin Line
CH-0403
0.3" × 0.46" | Thin Line
CH-0404
0.5" × 0.47" | Thin Line
CH-3000
0.98" × 1.16" | Surface / Suspended Optical
CH-003
0.91" × 0.59" | Recessed
CH-004
0.67" × 0.59" | Surface
CH-006
0.625" × 0.625" | Angled
CH-011
0.75" × 0.813" | Surface
CH-016
1.188" × 1.188" | Angled
CH-027
0.813" × 1.063" | Surface / Suspended
CH-076
6.25" × 3.125" | Wall Mounted
CH-202
0.688" × 0.625" | Surface / Adjustable
CH-211
0.75" × 0.5" | Surface / Suspended / Adjustable
CH-222
0.938" × 0.563" | Surface / Suspended / Adjustable
CH-291
3.563" × 1.5" | Suspended Aluminum Channel
CH-409
0.688" × 0.5" | Surface
CH-514
0.75" × 0.188" | Surface
CH-602
0.688" × 0.25" | Bendable
CH-607
0.75" × 0.75" | Angled
CH-091
Knife Edge Extruded Aluminum Mounting Channel
CH-723
Extruded Aluminum Mounting Channel
CH-724
Extruded Aluminum Mounting Channel
CH-725
Extruded Aluminum Mounting Channel
CH-0010
Trimless & Mud-in Channel
CH-224
Extruded Aluminum Mounting Channel
CH-226
Extruded Aluminum Mounting Channel
CH-013-C
1.188" × 0.375" | Recessed
CH-014-C
0.938" × 0.375" | Surface / Adjustable
CH-031-C
1.438" × 1.125" | Recessed
CH-206-M
1.438" × 1.125" | Recessed
CH-217-N
1.938" × 1.5" | Recessed
CH-218-N
1.375" × 1.5" | Surface / Suspended / Adjustable
CH-219-N
1.625" × 1.375" | Wall Mounted
CH-223-M
1" × 2.75" | Recessed / Wall Mounted
CH-228-N
1.375" × 1" | Surface / Suspended / Adjustable
CH-241-M
0.938" × 3.25" | Wall Mounted
CH-242-M
1.563" × 3.25" | Wall Mounted
CH-501-A
0.938" × 0.313" | Recessed
CH-502-A
0.688" × 0.313" | Surface / Adjustable
CH-506-A
0.688" × 0.563" | Surface / Adjustable
