CH-724
Extruded Aluminum Mounting Channel
- Available in 2 Meter Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Spec Sheet
Spec SheetWarranty

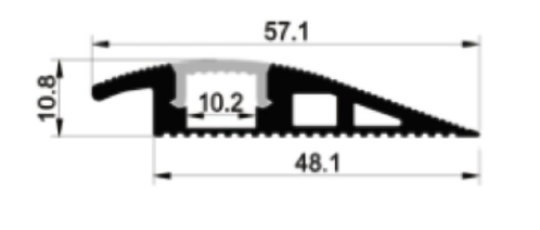

Technical Specifications
| Model | CH-724 |
| Length | 2 meters |
| External Width | 57.1mm (2-1/4") |
| Internal Width | 10.2mm (3/8") |
| Height | 10.8mm (7/16") |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- CH-724 — CH-724
2. Length
- 2 — 2 Meters
3. Lens
- CL — Clear
- FR — Frosted
- WH — White
- BK — Black
4. Mounting
- SF — Surface Mount
5. End Cap
- EC — End Caps (Included)
