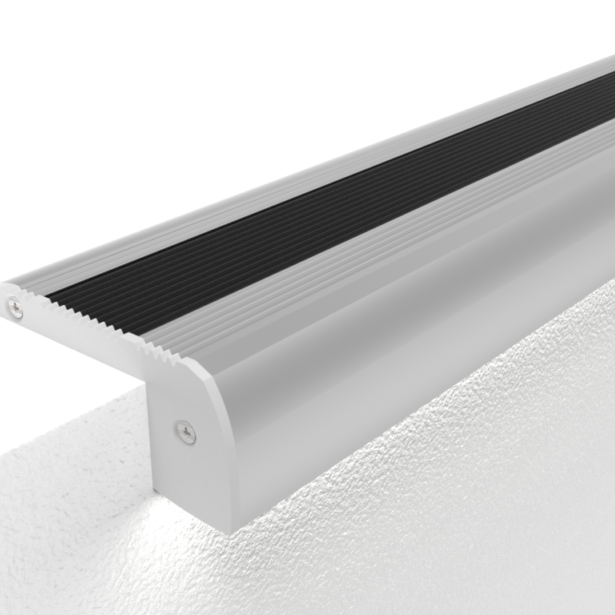

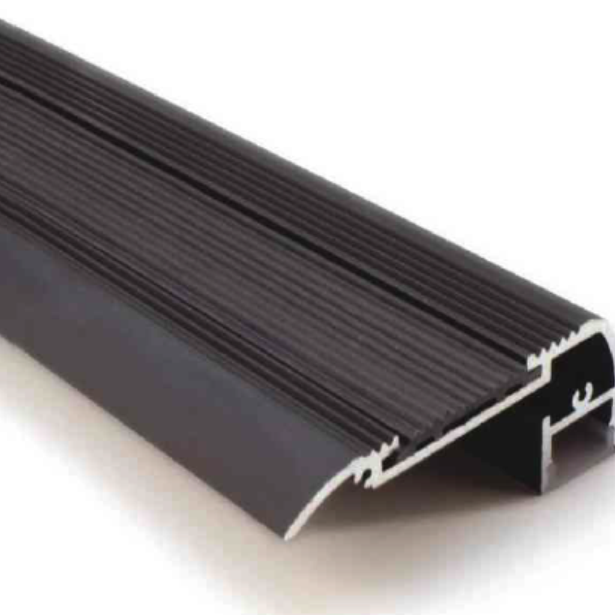

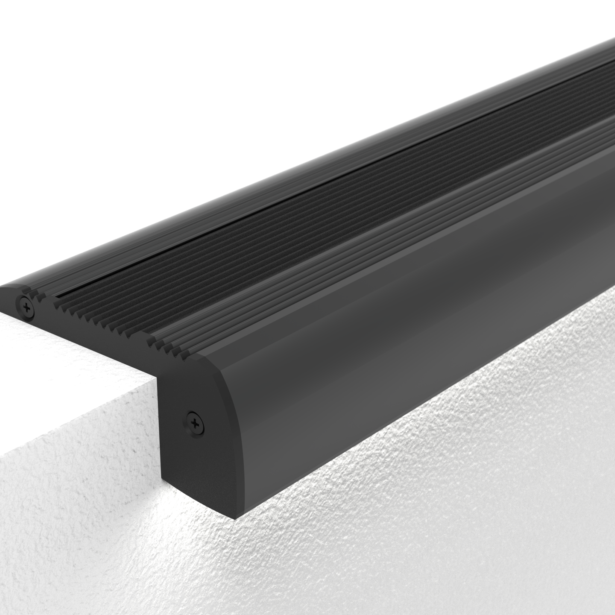

CH-224
Extruded Aluminum Mounting Channel
- Available in 2 Meter Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Spec Sheet
Spec SheetWarranty

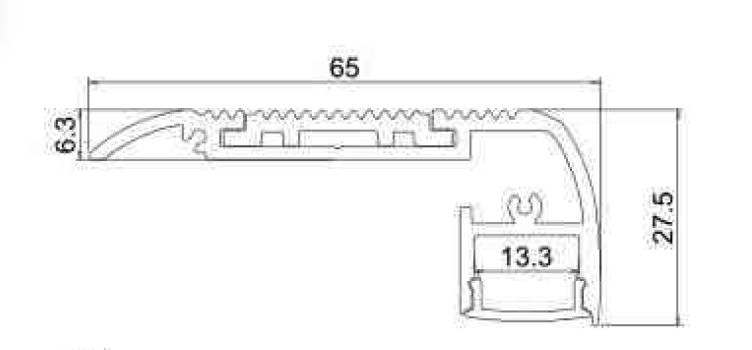

Technical Specifications
| Series | CH-224 |
| Length | 2 meters |
| External Width | 65mm (2-9/16") |
| Internal Width | 13.3mm (1/2") |
| Height | 27.5mm (1-1/16") |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- CH-224 — CH-224
2. Length
- 2 — 2 Meters
3. Lens
- CL — Clear
- FR — Frosted
4. Mounting
- SF — Surface Mounted
5. End Cap
- EC — End Caps (Included)
