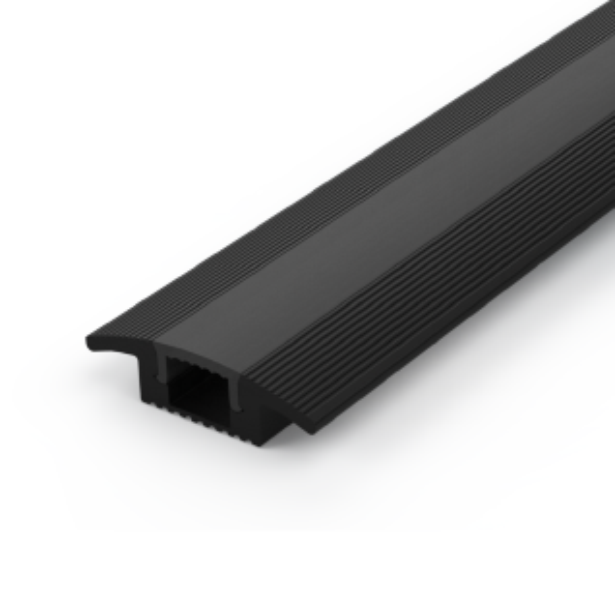

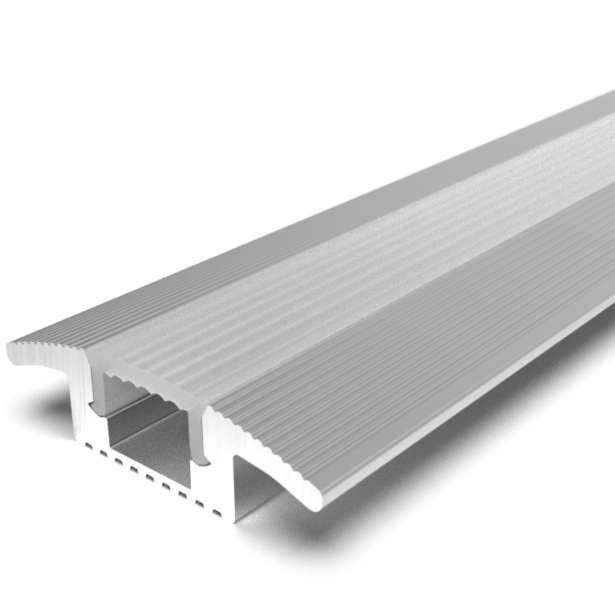

CH-723
Extruded Aluminum Mounting Channel
- Available in 2 Meter Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Spec Sheet
Spec SheetWarranty

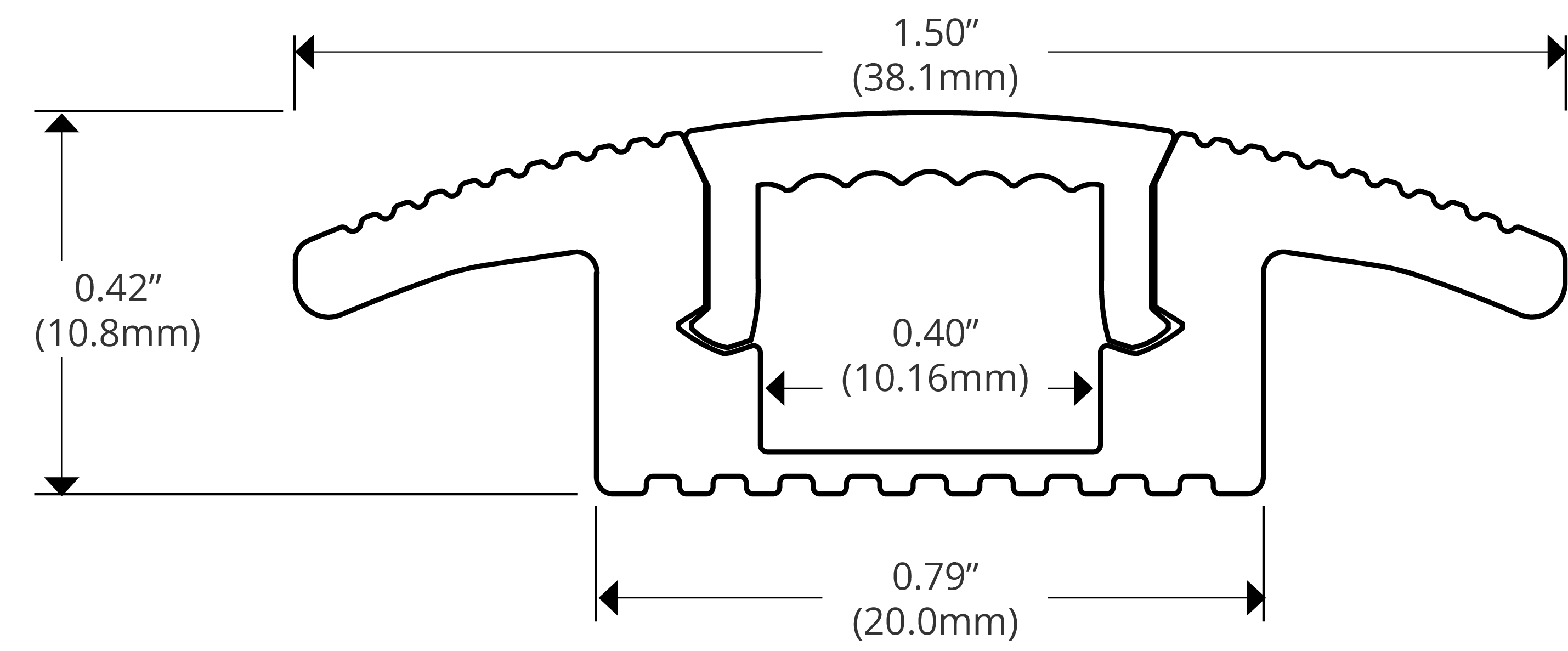

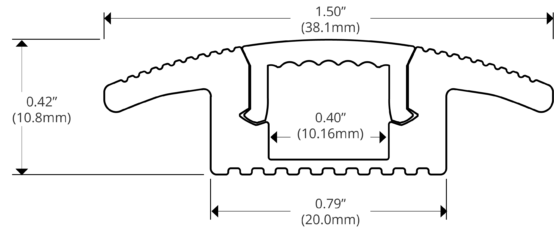

Technical Specifications
| Series | CH-723 |
| Length | 78.74" (2M) |
| Width | 1.50" (38.1mm) |
| Width (Internal) | 0.40" (10.2mm) |
| Height | 0.42" (10.8mm) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- CH-723 — CH-723
2. Length
- 2 — 2 Meter
3. Lens
- CL — Clear
- FR — Frosted
- WH — White
- BK — Black
4. Mounting
- SF — Surface Mount
5. End Cap
- EC — End Caps (included)
