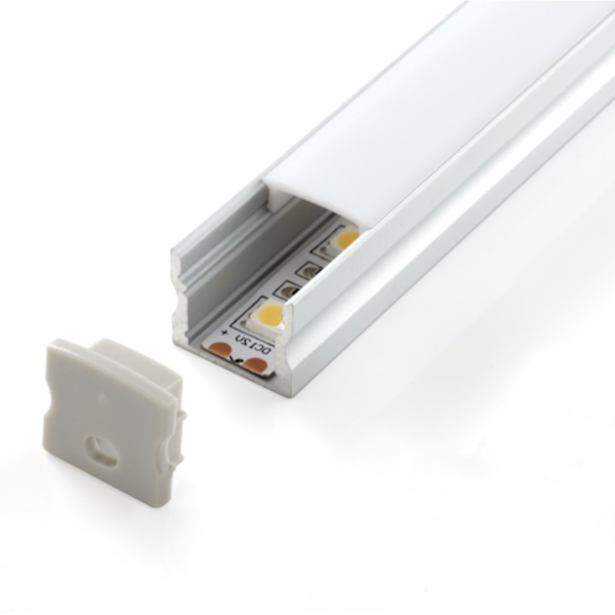

CH-004
0.67" × 0.59" | Surface
- Available In 78.74″ (2m) Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths and Finishes
Downloads
Spec Sheet
Spec SheetWarranty
Technical Specifications
| Length | 78.74" (2m) |
| Overall Width | 0.67in (17.1mm) |
| Internal Width | 0.48in (12.3mm) |
| Height | 0.59in (15.2mm) |
| Lens Color | White, White Continuous, Black |
| Finish | Anodized Matte |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- CH003 — CH-003
2. Length
- 2 — 2 Meter
3. Lens
- CL — Clear
- FR — Frosted
- WH — White
- GC — Graze Clear
- FG — Frosted Graze
4. Mounting
- PL — Plastic Clip
- MT — Metal Clip
- PV — Pivot Clip
5. End Cap
- EC — End Cap Pair
