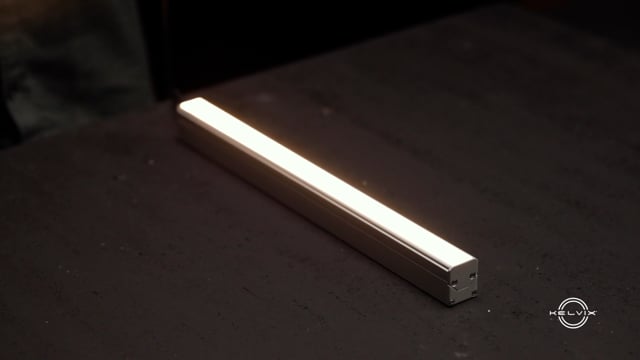

CH-3000

0.98" × 1.16" | Surface / Suspended Optical

Download Spec Sheet Contact Us Add to Project

Graze (30°/ 60°) or Wash (90°) featured surfaces with no hotspots from multiple mounting directions.

Store in a temperature-controlled environment

Available In 78.74″ (2m) Sections
Two Part Aluminum Construction with Preset, Adjustable Angles
Anodized Matte Finish
Straight and Angled Connectors Available to Create Long, Continuous Runs
Consult Factory for Custom Lengths and Finishes

Downloads

Spec Sheet

Installation Instructions

Technical Specifications

Length	78.74″ (2m)
Overall Width	0.98″ (25mm)
Internal Width	0.89″ (22.5mm)
Height	1.16″ (29.7mm)
Angled Height	1.34″ (34mm)
Lens Color	White Diffuser, Frosted Diffuser, 30° Clear Graze, 60° Clear Graze
Finish	Anodized Matte

Specify Your Product

Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.

Product Code:

Make a selection in each category to complete your product code.

1. Item
