Zolo™ 5
Z5 Series | Slim Indoor/Outdoor LED Washer/Grazer
Zolo 5 is our most popular indoor/outdoor washer/grazer. With its small form factor, great light output, and high customizability, it’s sure to fit your project perfectly.
- High Purity Tempered Glass
- Extruded Aluminum Alloy Housing
- Available in Titanium Gray, Black, or White Finish
- Multi Volt 24VDC Remote Driver (Sold Separately)
- Daisy Chain Multiple Fixtures
- IP66 Outdoor Rated
- Louver Options Available
Downloads
Technical Specifications
| Dimming Options | PWM, Triac, 0-10V, DMX 512, ELV |
| Input Voltage | 24V DC/Constant Voltage |
| Watts per Foot* | 8 W/ft |
| Lumens per watt | 100 lm/W |
| Lumen per Foot | 800 lm/ft |
| Beam Spread | 25°, 30°, 50°, 25°×40°, 30°×55° |
| Max Run Length | 12ft |
| CRI* | 85 |
| Operating Temp. | -40°F (-40°C) to 140°F (60°C) |
* Customizable—Consult Factory
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- Z5 — Zolo 5

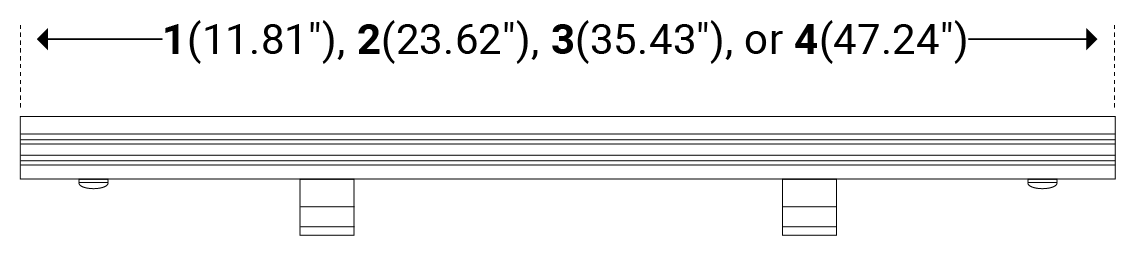

2. Length
- 1 — 11.81" (300mm)
- 2 — 23.62" (600mm)
- 3 — 35.43" (900mm)
- 4 — 47.24" (1200mm)
3. Power*
- 8W — 8 W/ft
4. Color/Temp*
- 27 — 2700K
- 30 — 3000K
- 35 — 3500K
- 40 — 4000K
- 50 — 5000K
5. Beam Angle
- 25 — 25°
- 30 — 30°
- 50 — 50°
- 2540 — 25°×40°
- 3055 — 30°×55°
6. Mounting
- S1 — 1" Stand Off
- S2 — 2" Stand Off
- CP — Mounting Clip
- GS — Ground Stake
7. Finish*
- TG — Titanium Gray
- BK — Black
- WH — White
8. Option
- NA — None
- LV — Louver
- ALV — Asymmetric Louver
* Customizable—Consult Factory
Standards and Certifications
Related Projects
Related Products
Zolo™ 5
Z5 Series | Slim Indoor/Outdoor LED Washer/Grazer
Zolo™ 7
Z7 Series | Indoor/Outdoor LED Washer/Grazer
AC Zolo™ 7
Z7AC Series | White Light Line Voltage Washer/Grazer
AC Zolo™ 7 RGBW Alternating
Z7AC Series | Color Changing Line Voltage Washer/Grazer
AC Zolo™ 7 RGBW Combined
Z7AC Series | Color Changing Line Voltage Washer/Grazer
Mounting
1" Stand Off
Unit Number
Z-05-S1
Ordering Code
S1
Length
0.71" (18.0mm)
Width
1.26" (32.0mm)
Stand Off Height
1.13" (28.7mm)
Rotation
75°
2" Stand Off
Unit Number
Z-05-S2
Ordering Code
S2
Length
0.71" (18.0mm)
Width
1.65" (42.0mm)
Stand Off Height
2.24" (57.0mm)
Rotation
105°
Mounting Clip
Unit Number
Z-05-CP
Ordering Code
CP
Length
1.18" (30.0mm)
Width
0.98" (25.0mm)
Stand Off Height
0.67" (17.0mm)
Ground Stake
Unit Number
Z-05-GS
Ordering Code
GS
Diameter
ø2.05″ (52.1mm)
Stand Off Height
9.51" (241.6mm)
Rotation
95°
Options
Louver
Unit Number
Z-05-LV
Ordering Code
LV
Louver Width
1.46" (37.0mm)
Louver Height
0.39" (10.0mm)
Overall Height
1.18" (30.0mm)
Asymmetric Louver
Unit Number
Z-05-ALV
Ordering Code
ALV
Louver Width
1.46" (37.0mm)
Louver Height
0.39" (10.0mm)
Overall Height
1.18" (30.0mm)
Power & Connect Options

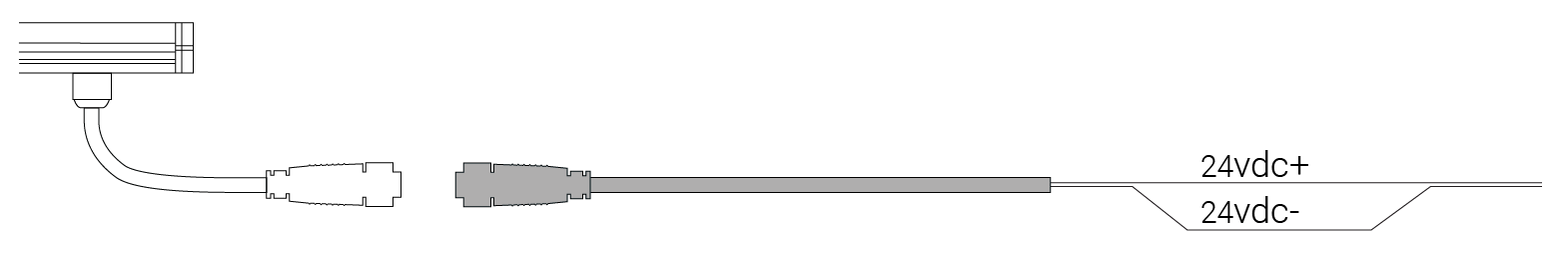

Power Lead

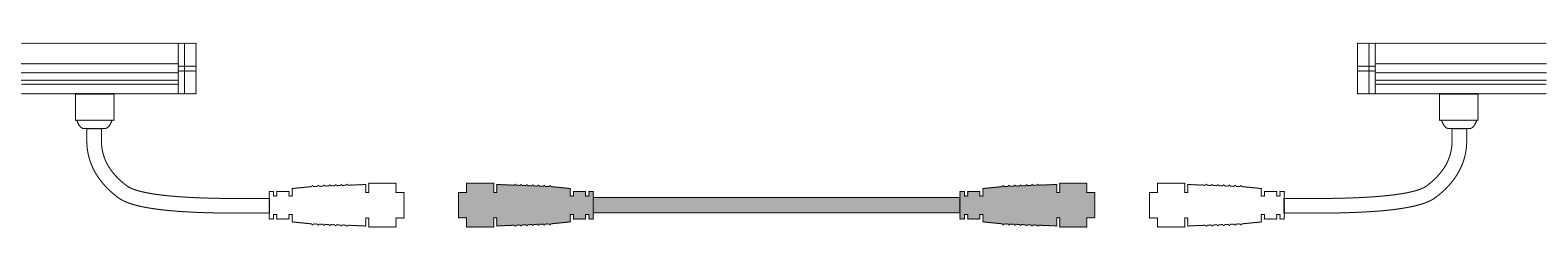

Connector
Compatible Power Supplies
ULV96
96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
96 Watt - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
25HE-24V
25 Watt - 24 Volt Universal Dimming
50HE-24V
50 Watt - 24 Volt Universal Dimming Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
