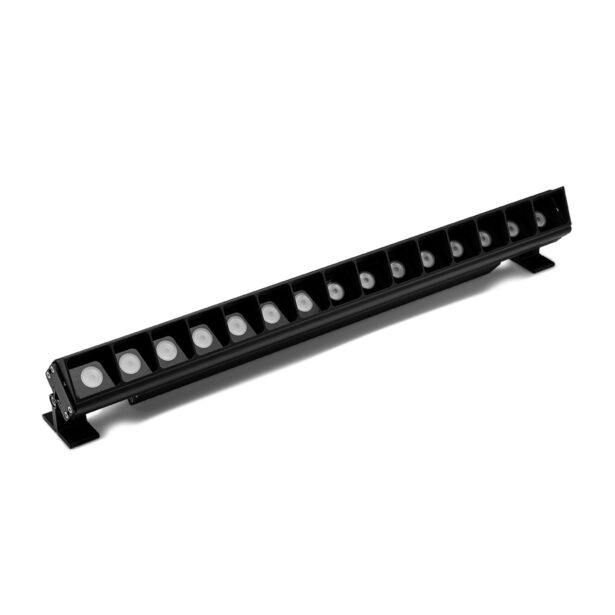

AC Zolo™ 7
Z7AC Series | White Light Line Voltage Washer/Grazer
The AC Zolo 7 is the first line voltage option in our flagship grazing series. Available with a variety of optics, accessories, and color temperature options without the need for remote drivers. IP66 rated for Dry/Damp/Wet locations.
Store in a Temperature-Controlled Environment.
Product Features
- 120-277V Universal Input
- High Purity Tempered Glass
- Extruded Aluminum Alloy Housing
- Available in Titanium Gray, Black, or White Finish*
- Daisy Chain Multiple Fixtures
- IP66 Outdoor Rated
- Louver Options Available
*Customizable — Consult Factory
Downloads
Technical Specifications
| Length | 1ft, 2ft, 3ft, 4ft |
| Color/Temperature | 2700K, 3000K, 3500K, 4000K |
| Dimming Protocol | 0-10V, DMX 512, DALI, Non-Dimmable |
| Finish* | Titanium Gray, Black, White |
| Input Voltage | 120–277V AC |
| Watts per Foot | 9 W/ft |
| Lumen per Foot | 900 lm/ft |
| Lumens per watt | 100 lm/W |
| Optic | 10° × 55°, 20° × 40°, 13°, 20°, 25°, 35°, 50° |
| Max Run Length | 75ft (at 120VAC) |
| CRI* | 80 |
| Operating Temp. | -40°F (-40°C) to 140°F (60°C) |
| Storage Temp. | -40°F (-40°C) to 185°F (85°C) |
* Customizable—Consult Factory
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- Z7AC — AC Zolo 7
2. Length
- 1 — 12.32" (313mm)
- 2 — 23.81" (605mm)
- 3 — 35.43" (900mm)
- 4 — 46.85" (1190mm)
3. Power
- 9 — 9 W/ft
4. Fixture Type
- W — White Light
5. Dimming
- Z — 0-10V
- X — DMX
- D — DALI
- F — Non-Dimmable
6. Color/Temp*
- 27 — 2700K
- 30 — 3000K
- 35 — 3500K
- 40 — 4000K
7. Optic
- 1055 — 10° × 55°
- 2040 — 20° × 40°
- 13 — 13°
- 20 — 20°
- 25 — 25°
- 35 — 35°
- 50 — 50°
8. Mounting
- S2 — 2" Stand Off
- S3 — 3" Stand Off
- GS — Ground Stake
- L3 — L Bracket
9. Finish*
- TG — Titanium Gray
- BK — Black
- WH — White
10. Option
- NA — None
- LV — Louver
- ALV — Asymmetric Louver
* Customizable—Consult Factory
Standards and Certifications
Power/Connect Options
Power Lead
6ft
Z-7AC-FML-6
20ft
Z-7AC-FML-20
50ft
Z-7AC-FML-50
Connector
1ft
Z-7AC-FMC-1
2ft
Z-7AC-FMC-2
6ft
Z-7AC-FMC-6
T-Connector
Unit Number
Z-7AC-TCONNECTOR
End Cap
End Cap
Z-7AC-END
End Cap DMX
Z-7AC-END-DMX
Mounting Options
2" Stand Off
Unit Number
Z-07-S2
Ordering Code
S2
Length
1.18" (30.0mm)
Width
2.36" (60.0mm)
Stand Off Height
1.87" (47.4mm)
Rotation
90°
3" Stand Off
Unit Number
Z-07-S3
Ordering Code
S3
Length
1.18" (30.0mm)
Width
2.36" (60.0mm)
Stand Off Height
2.63" (66.9mm)
Rotation
105°
Ground Stake
Unit Number
Z-07-GS
Ordering Code
GS
Diameter
ø2.05″ (52.1mm)
Stand Off Height
9.64" (244.8mm)
Rotation
70°
L Bracket
Unit Number
Z-07-L3
Ordering Code
L3
Foot Length
1.18" (30.0mm)
Foot Width
2.36" (60.0mm)
Stand Off Height
2.67" (67.9mm)
Louver Options
Louver
Unit Number
Z-07-LV
Ordering Code
LV
Louver Width
2.14" (54.3mm)
Louver Height
0.79" (20.0mm)
Overall Height
1.34" (33.0mm)
Asymmetric Louver
Unit Number
Z-07-ALV
Ordering Code
ALV
Louver Width
2.14" (54.3mm)
Louver Height
0.79" (20.0mm)
Overall Height
1.34" (34.0mm)
