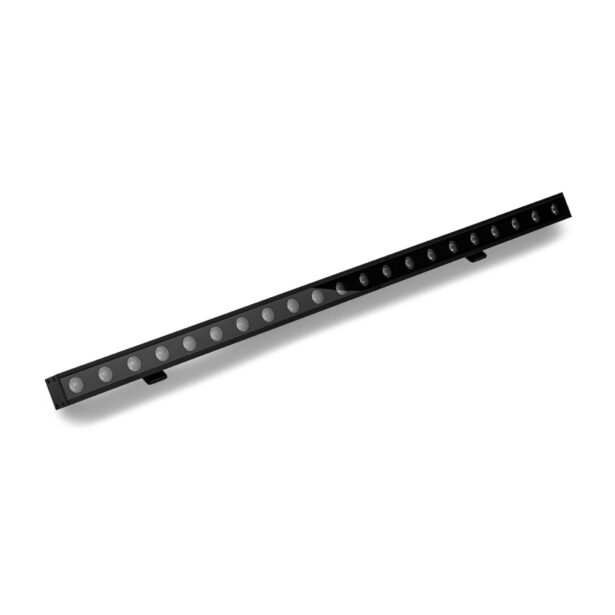

Zolo™ 3
Z3 Series | Ultra-Thin Indoor LED Washer/Grazer
Zolo 3 is an interior washer/grazer with a small form factor, great light output, and is highly customizable to perfectly fit your project.
- Multiple Optics Options Available
- Extruded Aluminum Alloy Housing
- Available in Titanium Gray, Black or White Finish
- Multi Volt 24VDC Remote Driver (Sold Separately)
- Daisy Chain Multiple Fixtures
- Optional Glare Control Accessories
Downloads

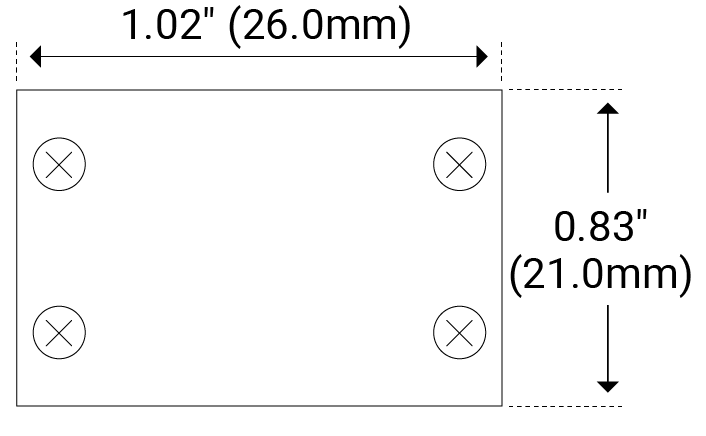

Technical Specifications
| Dimming Protocol | PWM, Triac, 0-10V, DMX 512, ELV |
| Input Voltage | 24V DC/Constant Voltage |
| Watts per Foot* | 6W/ft |
| Lumens per watt | 100 lm/W |
| Lumen per Foot | 600 lm/ft |
| Optic | 20°, 30°, 20°×40°, 60°, 80° |
| Max Run Length | 16ft |
| CRI* | 85 |
| Operating Temp. | -40°F (-40°C) to 140°F (60°C) |
| Storage Temp. | -4°F (-20°C) to 140°F (60°C) |
* Customizable—Consult Factory
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- Z3 — Zolo 3

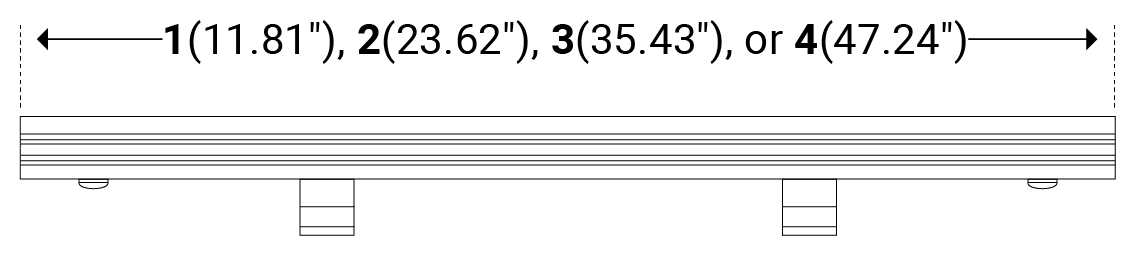

2. Length
- 1 — 11.81" (300mm)
- 2 — 23.62" (600mm)
- 3 — 35.43" (900mm)
- 4 — 47.24" (1200mm)
3. Power*
- 6W — 6 W/ft
4. Color/Temp*
- 27 — 2700K
- 30 — 3000K
- 35 — 3500K
- 40 — 4000K
5. Optic
- 20 — 20°
- 30 — 30°
- 2040 — 20°×40°
- 60 — 60°
- 80 — 80°
6. Mounting
- S1 — 1" Stand Off
- CP — Mounting Clip
7. Finish*
- TG — Titanium Gray
- BK — Black
- WH — White
8. Option
- NA — None
- GS — Solid Glare Shield
- LV — Louver
- ALV — Asymmetric Louver
* Customizable—Consult Factory
Standards and Certifications
Power/Connect Options
Power Lead
6ft
Z-03-FML-6
20ft
Z-03-FML-20
50ft
Z-03-FML-50
Connector
1ft
Z-03-FMC-1
2ft
Z-03-FMC-2
6ft
Z-03-FMC-6
Mounting Options
1" Stand Off
Unit Number
Z-03-S1
Ordering Code
S1
Length
0.70" (18.0mm)
Width
1.25" (32.0mm)
Stand Off Height
1.06" (27.0mm)
Rotation
70°
Mounting Clip
Unit Number
Z-03-CP
Ordering Code
CP
Length
0.79" (20.0mm)
Width
0.70" (17.7mm)
Stand Off Height
0.45" (11.5mm)
Glare/Louver Options
Solid Glare Shield
Unit Number
Z-03-GS
Ordering Code
GS
Width
1.02" (26.0mm)
Height
1.46" (37.0mm)
Louver
Unit Number
Z-03-LV
Ordering Code
LV
Louver Width
1.20" (30.5mm)
Louver Height
0.51" (13.0mm)
Overall Height
1.04" (26.5mm)
Asymmetric Louver
Unit Number
Z-03-ALV
Ordering Code
ALV
Louver Width
1.20" (30.5mm)
Louver Height
0.51" (13.0mm)
Overall Height
1.04" (26.5mm)
