FX3D (Indoor/Outdoor)
FX3D Series | 3D Bendable Wall Washer

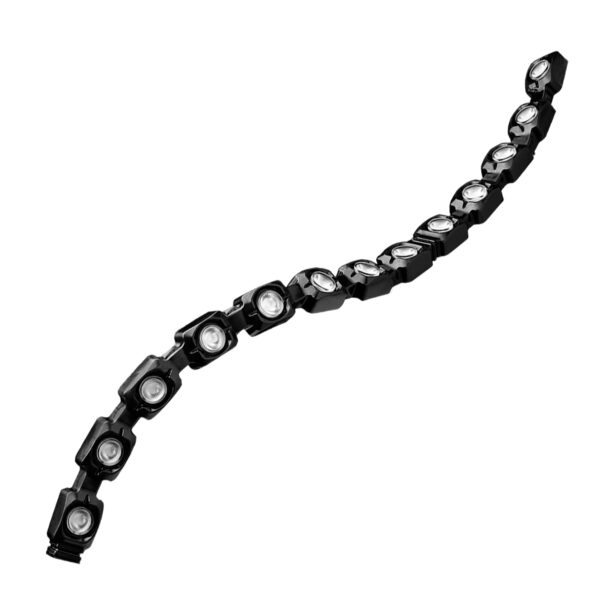

FX3D is a dual bending linear light fixture with a variety of functional components and mounting options so you can use it in any situation.
Omnidirectional Bend
Multiple Beam Options
Field Modifiable Channel and Louvers
IP67
Downloads
Technical Specifications
| Series | FX3D |
| Temp/Colors | 2700K–4000K, Red, Green, Blue |
| Dimming Protocol | Triac, ELV, 0–10V, DMX |
| Input Voltage | 24V DC |
| Indoor/Outdoor | Indoor/Outdoor |
| Beam Spread | 30°, 60°, 15°×50°, 25°×45°, 30°×50° |
| CRI | Ra 90+, R9 50+ |
| Diode | 2835 |
| Diode Pitch | 8 LED/ft |
| Bend Radius | 4.70" (120.0mm) |
| Cut Intervals | 12.00" (304.8mm) |
| Dimensions | 0.87" (22.0mm) × 0.47" (12.0mm) |
| Operating Temp. | -22°F (-30°C) to 122°F (50°C) |
| Storage Temp. | Temperature-Controlled Environment |
| Output (lm/ft) | 2700K | 3000K | 3500K | 4000K | Red | Green | Blue |
|---|---|---|---|---|---|---|---|
| Lumens (per ft) | 480 | 480 | 522 | 558 | 92 | 230 | 54 |
| Wattage (per ft) | 4.3 | 4.3 | 4.3 | 4.3 | 2.2 | 2.2 | 2.2 |
| Efficiency (lm/W) | 112 | 112 | 112 | 112 | 33 | 93 | 19 |
| Max Run Length (ft) | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| 1 ft | 2 ft | 3 ft | 4 ft | 5 ft | 6 ft | 7 ft | 8 ft | 9 ft | 10 ft | 11 ft | 12 ft | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Static White (Watts) | 5.5 | 10.7 | 15.0 | 18.9 | 22.0 | 26.1 | 28.9 | 31.2 | 33.7 | 34.3 | 36.7 | 38.6 |
| Red/Green/Blue (Watts) | 3.2 | 6.2 | 8.9 | 11.4 | 13.7 | 15.9 | 17.8 | 19.7 | 21.4 | 23.0 | 24.5 | 26.0 |
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- FX3D — FX3D
2. Temp/ Colors*
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- RD — Red
- GRN — Green
- BL — Blue
3. Output
- 500 — 500 lm/ft
4. Optic*
- 30 — 30°
- 60 — 60°
- 1550 — 15°×50°
- 2545 — 25°×45°
- 3050 — 30°×50°
5. Feed Style Length
- E12 — End Feed 12"
6. Fixture Length (Max 12ft)
7. Modification
- NA — None
- WH — White Jacket
* Customizable—Consult Factory
Standards and Certifications
Mounting / Glare Control Options
Mounting Clip
Unit Number
FX3D-CLP-F1-PAK
Length
1.14" (28.9mm)
Width
0.79" (20.0mm)
Height
0.53" (13.5mm)
Includes
10 Units
Angled Mounting Clip
Unit Number
FX3D-CLP-A1-PAK
Length
1.14" (29.0mm)
Width
0.85" (21.6mm)
Height
1.12" (28.5mm)
Includes
10 Units & Mounting Clips
Mounting Channel
Unit Number
FX3D-CH-PL-2M
Length
78.74" (2m)
Width
1.01" (25.6mm)
Height
0.72" (18.3mm)
Asymmetric Louver
Unit Number
FX3D-CM-ALV
Length
12.00" (305mm)
Width
1.28" (32.6mm)
Height
1.32" (33.5mm)
Note
Mounting Channel Required
Symmetric Louver
Unit Number
FX3D-CM-LV
Length
12.00" (305mm)
Width
1.25" (31.8mm)
Height
1.32" (33.5mm)
Note
Mounting Channel Required
