Zolo™ 7
Z7 Series | Indoor/Outdoor LED Washer/Grazer
Zolo 7 is our brightest outdoor rated washer/grazer. While remaining slim, Zolo 7 offers 1100 lumens a foot! With multiple optics, kelvin temperatures, colors, and accessories Zolo 7 can light any project.
- High Purity Tempered Glass
- Extruded Aluminum Alloy Housing
- Available in Titanium Gray, Black, or White Finish
- Multi Volt 24VDC Remote Driver (Sold Separately)
- Daisy Chain Multiple Fixtures
- IP66 Outdoor Rated
- Louver Options Available
Downloads
Technical Specifications
| Dimming Protocol | PWM, Triac, 0-10V, DMX 512, ELV |
| Input Voltage | 24V DC/Constant Voltage |
| Watts per Foot* | 11 W/ft |
| Lumens per watt | 100 lm/W |
| Lumen per Foot | 1100 lm/ft |
| Optic | 10° × 50°, 25° × 40°, 15°, 30° |
| Max Run Length | 8ft |
| CRI* | 85 |
| Operating Temp. | -40°F (-40°C) to 140°F (60°C) |
| Storage Temp. | -22°F (-30°C) to 140°F (60°C) |
* Customizable—Consult Factory
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- Z7 — Zolo 7

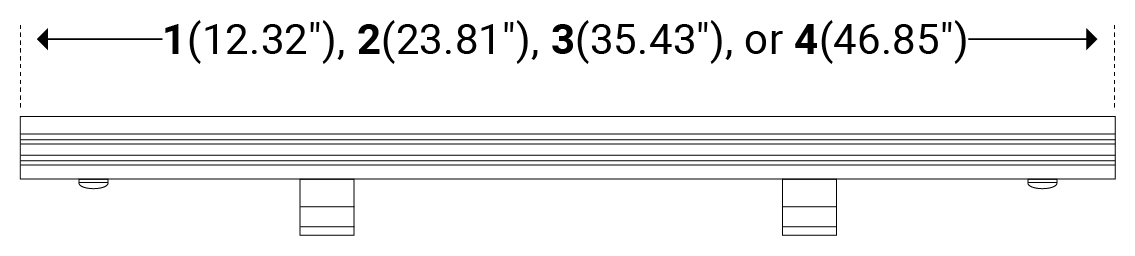

2. Length
- 1 — 12.32" (313mm)
- 2 — 23.81" (605mm)
- 3 — 35.43" (900mm)
- 4 — 46.85" (1190mm)
3. Power*
- 11W — 11 W/ft
4. Color/Temp*
- 27 — 2700K
- 30 — 3000K
- 35 — 3500K
- 40 — 4000K
5. Optic
- 1050 — 10°×50°
- 2540 — 25°×40°
- 15 — 15°
- 30 — 30°
6. Mounting
- S2 — 2" Stand Off
- S3 — 3" Stand Off
- CP — Mounting Clip
- GS — Ground Stake
- L3 — L Bracket
7. Finish*
- TG — Titanium Gray
- BK — Black
- WH — White
8. Option
- NA — None
- LV — Louver
- ALV — Asymmetric Louver
* Customizable—Consult Factory
Standards and Certifications
Related Projects
Power/Connect Options
Power Lead
6ft
Z-57-FML-6
20ft
Z-57-FML-20
50ft
Z-57-FML-50
Connector
1ft
Z-57-FMC-1
2ft
Z-57-FMC-2
6ft
Z-57-FMC-6
End Cap
Unit Number
Z-57-EC
Mounting Options
2" Stand Off
Unit Number
Z-07-S2
Ordering Code
S2
Length
1.18" (30.0mm)
Width
2.36" (60.0mm)
Stand Off Height
1.87" (47.4mm)
Rotation
90°
3" Stand Off
Unit Number
Z-07-S3
Ordering Code
S3
Length
1.18" (30.0mm)
Width
2.36" (60.0mm)
Stand Off Height
2.63" (66.9mm)
Rotation
105°
Mounting Clip
Unit Number
Z-07-CP
Ordering Code
CP
Length
0.98" (25.0mm)
Width
1.35" (34.3mm)
Stand Off Height
0.67" (17.0mm)
Ground Stake
Unit Number
Z-07-GS
Ordering Code
GS
Diameter
ø2.05″ (52.1mm)
Stand Off Height
9.64" (244.8mm)
Rotation
70°
L Bracket
Unit Number
Z-07-L3
Ordering Code
L3
Foot Length
1.18" (30.0mm)
Foot Width
2.36" (60.0mm)
Stand Off Height
2.67" (67.9mm)
Louver Options
Louver
Unit Number
Z-07-LV
Ordering Code
LV
Louver Width
2.14" (54.3mm)
Louver Height
0.79" (20.0mm)
Overall Height
1.34" (33.0mm)
Asymmetric Louver
Unit Number
Z-07-ALV
Ordering Code
ALV
Louver Width
2.14" (54.3mm)
Louver Height
0.79" (20.0mm)
Overall Height
1.34" (34.0mm)
