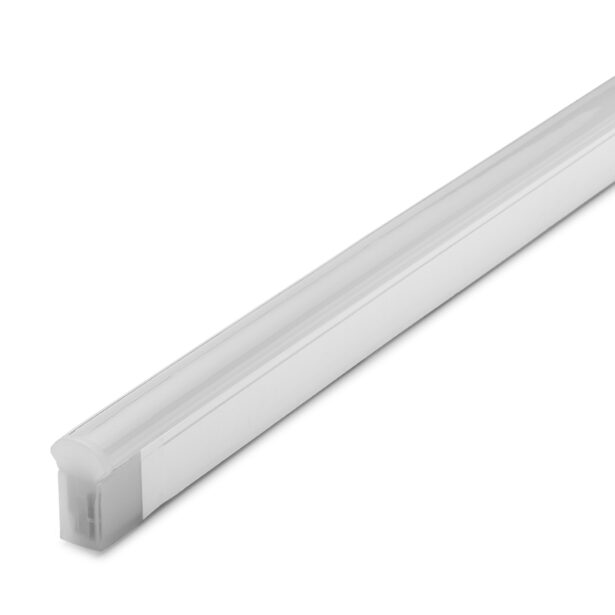

Signwave® 7 (Indoor/Outdoor)
SW7 Series | Wide Viewing Angle Pixel Control Flexible Lighting System

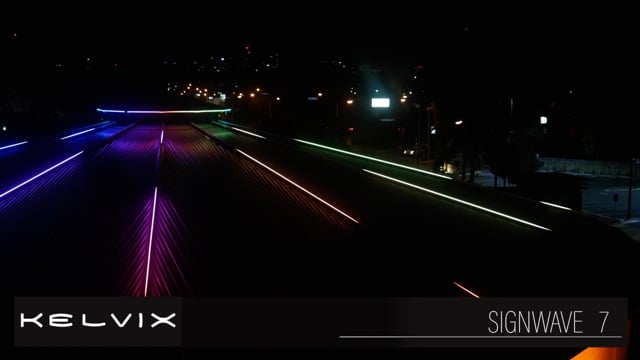

SignWave 7 is a Digital pixel controlled RGBW system offering unlimited light show potential.
- Digital Pixel Control RGBW
- Dimmable
- 50,000 Hour Life
- Domed Profile for Large Optic
- UL-Listed for Indoor and Outdoor Use
- IP67 or IP68 Option
- Factory-Installed Power Feed
- Injection-Molded Flush End Caps
- For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | RGBW, Pixel |
| Dimming Protocol | SPI |
| Indoor/Outdoor | Indoor/Outdoor |
| Input Voltage | 24V DC |
| Watts per Foot | 4.6W |
| Optic | 320° |
| Max Run Length | 16.4ft / 40 pixels (Indoors) |
| CRI | 80+ |
| Operating Temp. | -4°F (-20°C) to 95°F (35°C) |
| Lumens per Foot | 86 lm/ft for Red/Green/Blue/White |
| Lumens per watt | 19 lm/W |
| Viewing Angle | Wide |
| Life Expectancy | 50,000 Hour Life |
| Feed Orientation | Bottom Feed, End Feed, Side-Feed Right, Side-Feed Left |
| Bend Direction | Horizontal |
| Bend Radius | 4.75" (120mm) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Item
- SW7 — Signwave 7
2. Length
3. Color/Temp
- TXRGBW — Pixel RGBW
4. Feed Point
- B — Bottom Feed
- SL — Side-Feed Left
- SR — Side-Feed Right
- E — End Feed
5. Feed Length*
- S — Standard (119")
6. IP Rating
- IP67 — IP67
- IP68 — IP68
* Customizable—Consult Factory
Standards and Certifications
Related Projects
Mounting Options

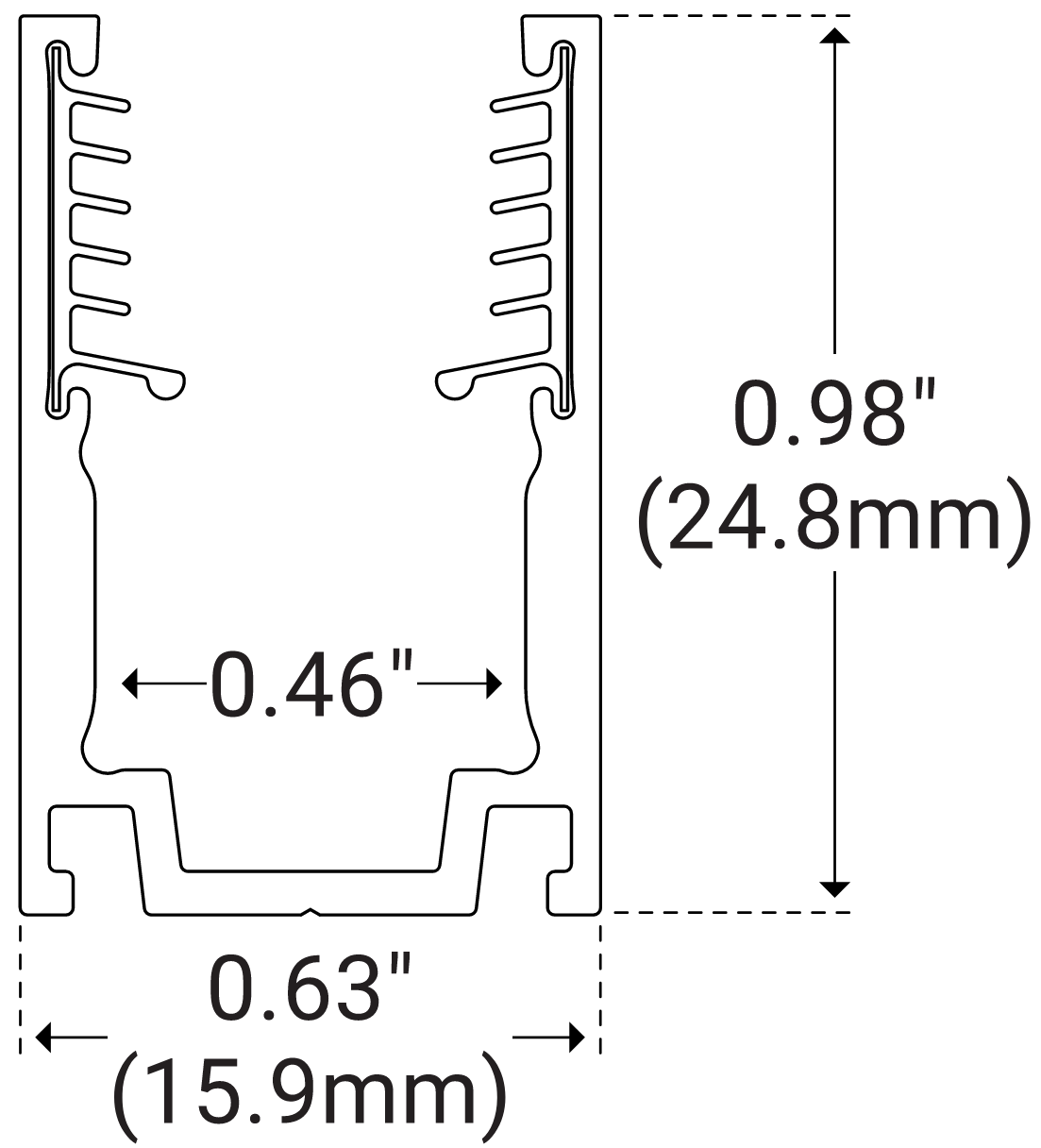

Aluminum Serrated Channel
Model
SW-E-AL-CH-SR-2M
Length
78.75" (2m)
Width
0.63" (15.9mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Aluminum Serrated Clip
Model
SW-E-CLP-AL-SR
Length
0.79" (20mm)
Width
0.63" (15.9mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Aluminum Serrated Flex Channel
Model
SW-E-CH-AL-FLX-1M
Length
39.30" (1m)
Width
0.63" (15.9mm)
Internal Width
0.46" (11.8mm)
Height
0.98" (24.8mm)
Material
Aluminum
Side Mounting Bracket
Model
SW-CLP-RA
Length
0.79" (20mm)
Width
0.98" (25mm)
Height
2.75" (70mm)
Material
Aluminum
Compatible Power Supplies
ULV36
36 Watt - 24 Volt Class 2 Power Supply
ULV96
96 Watt - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
Discontinued 96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
