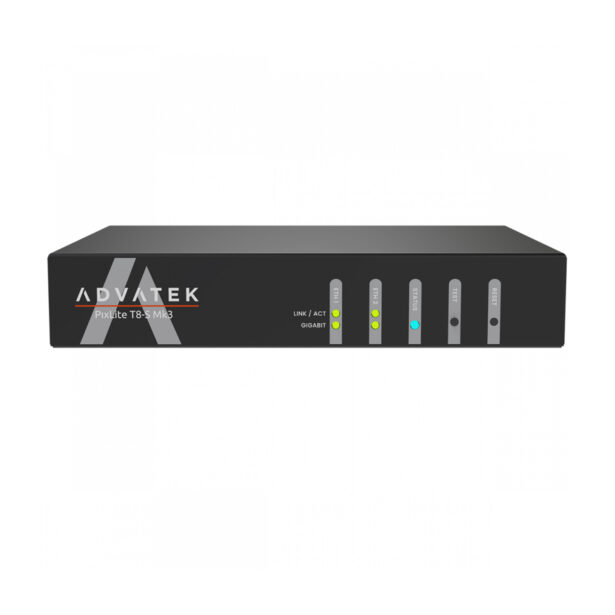

Advatek PixLite T8-S MK3
Long-Range Pixel Data Transmitter
The TX-T8MK3 is an advanced long-range pixel LED controller designed for reliability and user-friendliness. Capable of transmitting 96 universes of data up to 984ft, it’s perfect for professional installations with long-distance pixel setups. Must be paired with the Advatek R2F or R4D receiver.
- Send Pixel Data up to 984ft (300m)
- Up to 96 Universes of Art-Net or sACN
- Over 50+ Pixel Protocols Supported
- Configure Using Advatek Assistant 3 Software
Downloads
Technical Specifications
| Series | TX-T8MK3 |
| Input Voltage | 100–240V AC |
| Control Outputs | SPI (must be used with R2F-S or R4D-S) |
| Triggering & Integration | Dependant on connected controller |
| Inputs | Ethernet, DMX512, Serial |
| Max Devices | Unlimited/Dependant on Controller outputs |
| Pixel Protocols | 50+ |
| Max Distance | 984ft (300m) |
| Data Storage | Micro SD Card |
| Length | 8.70" (221.0mm) |
| Width | 6.70" (169.0mm) |
| Height | 1.70" (42.0mm) |
| Physical Build | Wall Mount, 1U Rack Mount Single, 1U Dual Rack |
| Temperature | 14F (-10 °C) to 140F (60 °C) |
Advatek Resources
Required software to control Advatek products.
Download Advatek Assistant 3 Software
Additional Advatek documentations.
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- TX — Pixel Control
2. Model
- T8MK3 — PixLite T8-S MK3
3. Type
- XMTR — Transmitter
4. Output
- ETH — Ethernet
5. Finish
- B — Black
Standards and Certifications
