Pavex™ Round

PVX-R Series | Round Inground Hardscape Fixture

Pavex Round is a unique, drive-over rated in-ground hardscape fixture. With multiple colors and CCT’s, Pavex’s non-slip high impact glass looks amazing in a variety of layout configurations. NOTE: Pavex Lighting Source and Housing Sold Separately.


  • Perfect for Pavers, Gravel, Soil, Decks, Etc. (Custom Housing needed for Concrete Mounting)
  • Pure White Tempered Glass
  • Drive-Over Rated
  • Non-Slip Textured Surface
  • High Impact Rated / IK10
  • Custom Sizes Available

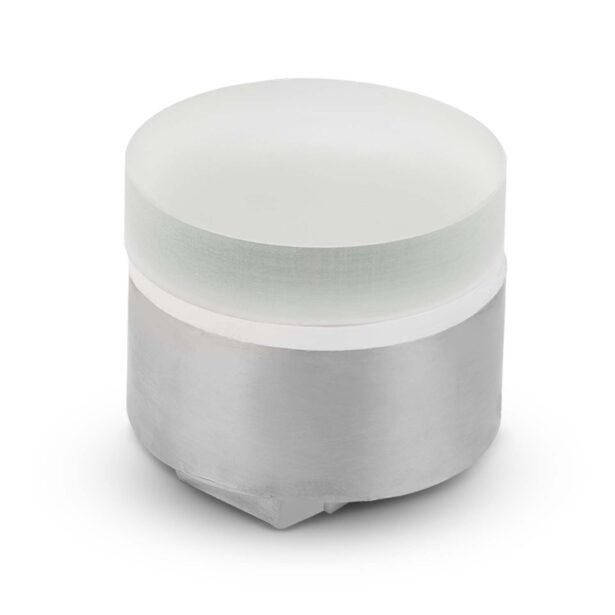

Pavex Round Fixture
Pavex Round Fixture
Pavex Round Fixture Lit
Pavex Round Housing Fixture 03 web
Pavex Round Housing Fixture Lit 03 web
Pavex round usecase hero 1500x1500

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

Technical Specifications

Length* 3" Diameter, 6" Diameter, 12" Diameter
Color/Temperature* 2700K, 3000K, 3500K, 4000K, Red, Green, Blue
Input Voltage 24V DC/Constant Voltage
Lumens per watt 30 lm/W
CRI 80
IP Rating IP67
Impact Rating IK10
Drive-Over Rating 10,000 lbs
Finish Stainless Steel
Electrical Safety Classification UL 2108 Non-Class 2
Operating Temp. -13°F (-25°C) to 122°F (50°C)

* Customizable—Consult Factory

* Customizable—Consult Factory

Standards and Certifications

Light Source Specs

Pavex Round 3"

Pavex Round 3 D LS Illustration
Unit Number
PVX-R-3D
Width
3.15″ (80mm)
Height
3.38″ (86mm)
Lumens
39 lm
Watts
1.3W

Pavex Round 6"

Pavex Round 6 D LS Illustration
Unit Number
PVX-R-6D
Width
5.90" (150mm)
Height
3.38″ (86mm)
Lumens
39 lm
Watts
1.3W

Pavex Round 12"

Pavex Round 12 D LS Illustration
Unit Number
PVX-R-12D
Width
11.81" (300mm)
Height
3.38″ (86mm)
Lumens
180 lm
Watts
6W
