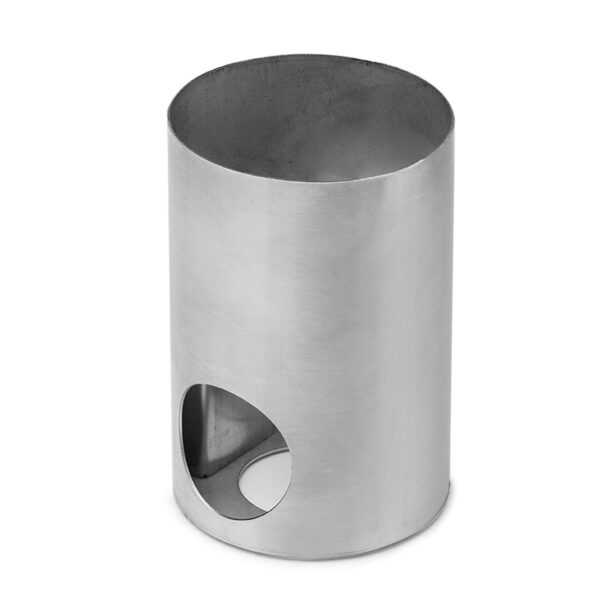

Pavex™ Round Housing
PVX-R Series | Housing Information for Pavex Round
Pavex Round is a unique, drive-over rated in-ground hardscape fixture. With multiple colors and CCT’s, Pavex’s non-slip high impact glass looks amazing in a variety of layout configurations. NOTE: Pavex Lighting Source and Housing Sold Separately.
- Perfect for Pavers, Gravel, Soil, Decks, Etc. (Custom Housing needed for Concrete Mounting)
- Pure White Tempered Glass
- Drive-Over Rated
- Non-Slip Textured Surface
- High Impact Rated / IK10
- Custom Sizes Available
Downloads
Technical Specifications
| Length* | 3" Diameter, 6" Diameter, 12" Diameter |
| Finish | Stainless Steel |
* Customizable—Consult Factory
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
Note, using this product will require:
Pavex™ Round
1. Item
- PVX — Pavex
2. Shape
- R — Round
3. Component
- HSE — Housing
4. Dimensions*
- 3D — 3" Diameter
- 6D — 6" Diameter
- 12D — 12" Diameter
5. Depth
- S — Standard 5"
- C — Custom
6. Knockout
- K1 — 1 1/4" Knockout
7. Material
- SS — Stainless Steel
* Customizable—Consult Factory
Standards and Certifications
Housing Specs
Pavex Round 3"
Width
3.35" (85mm)
Height
5" (127mm)
Pavex Round 6"
Width
6.10" (155mm)
Height
5" (127mm)
Pavex Round 12"
Width
12" (305mm)
Height
5" (127mm)
