Easy 006 Uniform Static White

Easy-Spec: Components to Easily Specify a Fixture

Download Spec Sheet Contact Us Add to Project

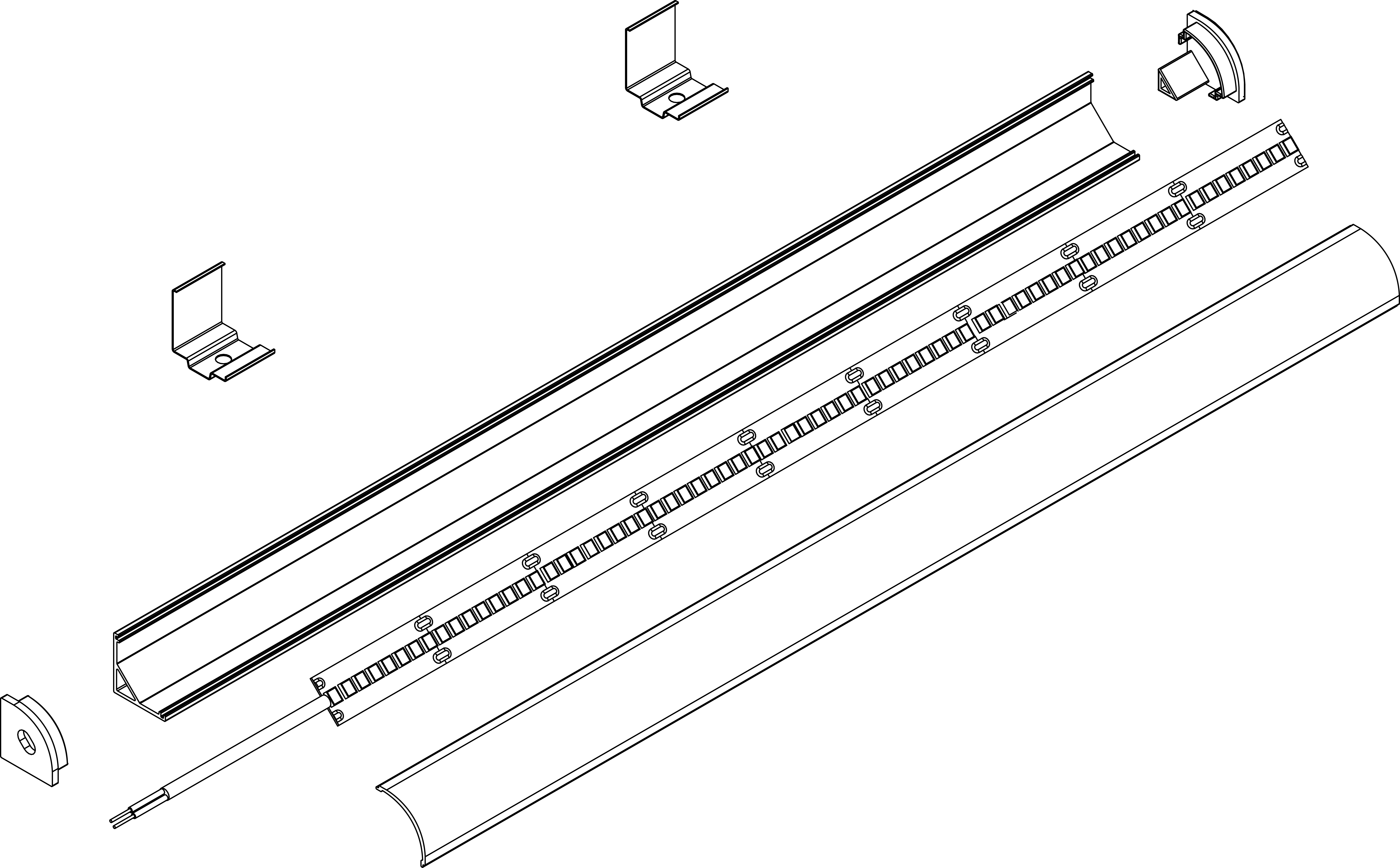

The Easy Spec series is designed for convenience and versatility, allowing you to quickly specify our standard Tape and Channel pairs with just one part number. Products arrive as individual components, providing your installation team the advantage of customizing lengths and configurations on-site for an optimal fit. Assembly services are available upon request.

Field Serviceable Light Source & Engine
Dimmable to 0.1%
5/10 Year Warranty for LED Strip / Drivers
Optional Assembly Available For Any Fixtures Up to 8ft*
Diode Imaging Free

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

IES Files

CH 006 + UNI Static White: All IES Files

Additional Files

Technical Specifications

Series	Easy-Spec™
Tape/Fixture Type	Uniform Static White
Temp/Color*	1800K–6500K
Input Voltage	24V DC
Lumens per Foot*	44–1491
Watts per Foot*	0.7–14.4
Beam Spread	103.8°, 94.6°, 115.2°, 22.5°, 72.1°
CRI*	90+, 95+
Diodes*	U2835
Binning Tolerance*	3+ SDCM, 2 SDCM, 1 SDCM
Max Run Length	7–46ft
Width	0.67" (17.1mm)
Height	0.31" (8.0mm)
Operating Temp	-4°F (-20°C) to 140°F (60°C)
Storage Temp	-4°F (-20°C) to 158°F (70°C)

* Customizable—Consult Factory

Specify Your Product

Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.

Product Code:

Make a selection in each category to complete your product code.

1. Series
