Digital Pixel (Indoor)

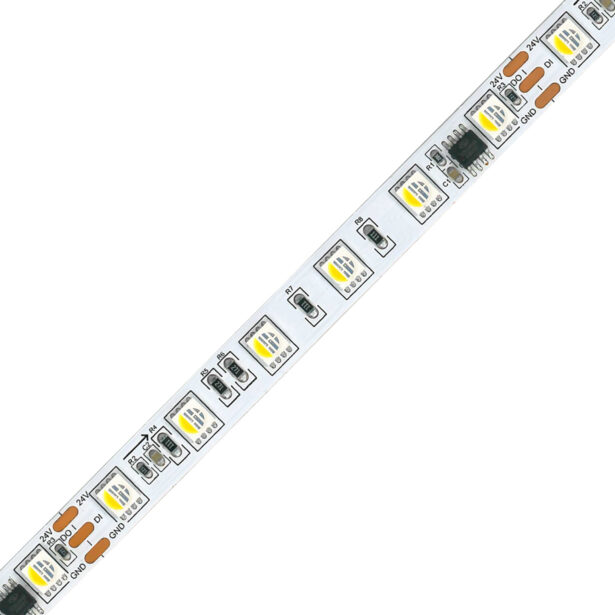

TXRGBW Series | Color Changing Pixel Control Linear LED Strip Tape
Chasing LED strips provides ultimate precision, allowing the user to control sections of LEDs every 6 diodes. Using SPI protocols, Digital Pixel LED strips enable extensive customization with nearly limitless programming capabilities, making them ideal for creating dynamic and complex lighting effects.
- Independently Controllable Every 6 Diodes
- 90+ CRI
- Dimmable
- 50,000 Hour Life
- UL-Listed for Indoor Use
- 3M™ Industrial Adhesive Backing
- For Use with Electronic Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 3000K |
| Dimming Protocol | SPI via UCS2904 |
| Indoor/Outdoor | Indoor |
| Input Voltage | 24V DC |
| Watts per Foot | 5.79W |
| Optic | 120° |
| Max Run Length | 16.4ft |
| CRI | 80+ |
| Operating Temperature | -40°F (-40°C) to 149°F (65°C) |
| Cut Intervals | 3.94" (100mm) |
| Tape Width | 0.38" (10mm) |
| Tape Height | 0.06" (2mm) |
| Diode | 5050 |
| Life Expectancy | 50,000 Hour Life |
| Field Cuttable | Yes |
| Lumens per Foot | 223 lm |
| Lumens per Watt | 38 lm/W |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. TX3RGBW
- TX3RGBW — TX3RGBW
2. 24V
- 24V — 24V
Standards and Certifications
