AC Zolo™ 7 RGBW Combined

Z7AC Series | Color Changing Line Voltage Washer/Grazer

The AC Zolo 7 is the first line voltage option in our flagship grazing series. Available with a variety of optics, accessories, and color temperature options without the need for remote drivers. IP66 rated for Dry/Damp/Wet locations.


Store in a Temperature-Controlled Environment.

  • 120-277V Universal Input
  • High Purity Tempered Glass
  • Extruded Aluminum Alloy Housing
  • Available in Titanium Gray, Black, or White Finish*
  • Daisy Chain Multiple Fixtures
  • IP66 Outdoor Rated
  • Louver Options Available

*Customizable — Consult Factory

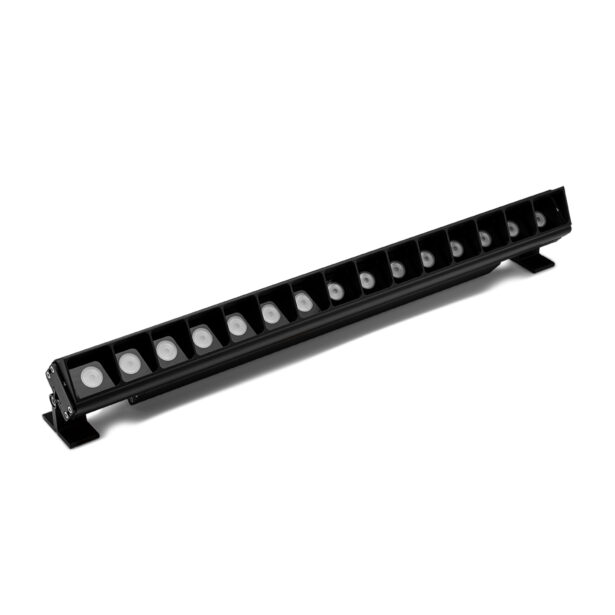

AC Zolo 7 RGBW Combined Hero ALV web
AC Zolo 7 RGBW Combined Hero ALV web
AC Zolo 7 RGBW Combined Hero ALV L It web
video
Ac zolo 7 closeup web
Ac zolo 7 rgbw combined closeupalv lit web

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

Technical Specifications

Length 1ft, 2ft, 3ft, 4ft
Color/Temperature 3500K
Dimming Protocol DMX 512
Finish* Titanium Gray, Black, White
Input Voltage 120–277V AC
Watts per Foot 15 W/ft
Lumen per Foot 600 lm/ft
Lumens per watt 40 lm/W
Beam Angle 20°, 25°, 35°, 50°
Max Run Length 50ft (at 120VAC)
CRI* 80
Operating Temp. -40°F (-40°C) to 140°F (60°C)

* Customizable—Consult Factory

* Customizable—Consult Factory

Standards and Certifications

Mounting Options

2" Stand Off

Ac zolo 7 2in stand off 500x500
Ac zolo 7 2in stand off line drawing
Unit Number
Z-07-S2

3" Stand Off

Ac zolo 7 3in stand off 500x500
Ac zolo 7 3in stand off line drawing
Unit Number
Z-07-S3

Ground Stake

Ac zolo 7 gs web 500x500
Ac zolo 7 ground stake line drawing
Unit Number
Z-07-GS

L Bracket

Ac zolo 7 l bracket 500x500
Ac zolo 7 l bracket line drawing
Unit Number
Z-07-L3

Options

Louver

Ac zolo 7 lv 500x500
Ac zolo 7 lv line drawing
Unit Number
Z-07-LV

Asymmetric Louver

Ac zolo 7 alv web 500x500
Ac zolo 7 alv line drawing
Unit Number
Z-07-ALV

Power & Connect Options

Power Lead

Ac zolo 7 fml web 768x501
Ac zolo 7 fml line drawing
Unit Number
Z-7AC-FML-6
Z-7AC-FML-20
Z-7AC-FML-50
Length
6ft
20ft
50ft

Connector

Ac zolo 7 fmc web 768x501
Ac zolo 7 fmc line drawing
Unit Number
Z-7AC-FMC-1
Z-7AC-FMC-2
Z-7AC-FMC-6
Length
1ft
2ft
6ft

T-Connector

Ac zolo 7 tconnector web 768x501
Ac zolo 7 tconnector line drawing
Unit Number
Z-7AC-TCONNECTOR

DMX End Cap

Ac zolo 7 ecd web
Ac zolo 7 end line drawing
Unit Number
Z-7AC-END-DMX

Compatible Accessories
