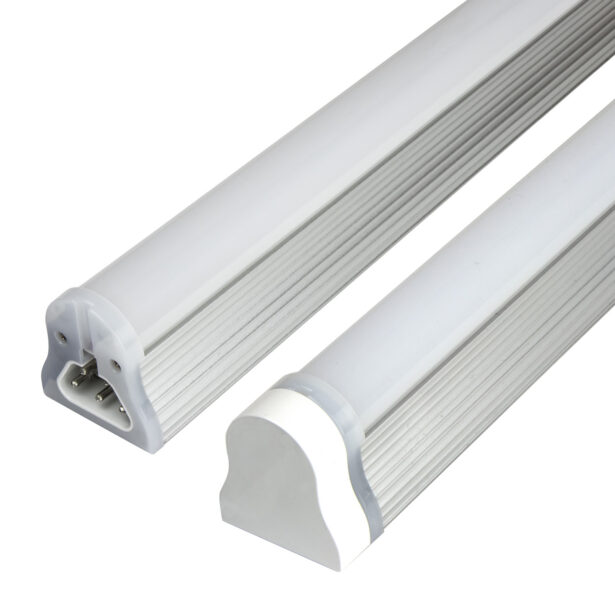

Quix™
Developed from our incredibly reliable Modulight Series, Quix is the ultimate in fast, economical cove lighting. Need a budget specification or a V/E solution? Look no further. Quix is 120–277V, modular, and offers 0-10V dimming. Quix offers amazing performance, at a budget far below the competition.
- 0-10V Direct Control
- Universal 120–277V Input
- Easy Linking Connection
- Diode Free Illumination
- Indoor Use
- Up to 200W Maximum Run Length
- Supports Title 24 JA8-2019 Compliance
- 14°F (-10°C) – 122°F (50°C)
Downloads
Technical Specifications
| Length | 1ft, 2ft, 3ft, 4ft |
| Color/Temperature | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K |
| Dimming Protocol | 0-10V |
| Finish | Silver |
| Input Voltage | 120–277V AC |
| Watts per Foot | 5W for 1ft, 9W for 2ft, 13W for 3ft, 18W for 4ft |
| Optic | 112° |
| Max Run Length | 42ft (at 120VAC) |
| CRI | 90+ |
| Wattage | 2700K | 3000K | 3500K | 4000K | 5000K | 6000K | |
|---|---|---|---|---|---|---|---|
| 1 — 14.4″ | 5W | 468 lm | 493 lm | 516 lm | 522 lm | 543 lm | 570 lm |
| 2 — 22.4″ | 9W | 909 lm | 957 lm | 1007 lm | 987 lm | 1026 lm | 1078 lm |
| 3 — 34.49″ | 13W | 1446 lm | 1554 lm | 1601 lm | 1621 lm | 1686 lm | 1770 lm |
| 4 — 46.45″ | 18W | 1898 lm | 1956 lm | 2028 lm | 2019 lm | 2100 lm | 2205 lm |
| Lumens per Watt | 93 lm/W | 98 lm/W | 103 lm/W | 104 lm/W | 108 lm/W | 114 lm/W |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- QX — Quix
- 550 — 550 lm/ft
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 50K — 5000K
- 60K — 6000K
- 1 — 14.40" (365.8mm)
- 2 — 22.40" (568.9mm)
- 3 — 34.49" (876.0mm)
- 4 — 46.45" (1179.8mm)
- 010V — 0-10V
- 120277 — 120V-277V
- SV — Silver
Standards and Certifications
Power/Connect Options
Hardwire Power Feed
Connect Quix to AC line voltage power source within j-box.All Quix fixtures will come standard with a 6" hardwire power feed.
Cord Coupler
Connects multiple Quix fixtures in series allowing separation. Do not exceed 200W.
Mounting Options
Mounting Clip
Included with fixture.
