Pavex™ Square

PVX-S Series | Square Inground Hardscape Fixture

With squares and rectangles in various sizes, Pavex Square is perfect for adding visual interest to pathways and other hardscape applications. NOTE: Pavex Lighting Source and Housing Sold Separately.


  • Perfect for Pavers, Gravel, Soil, Decks, Etc. (Custom Housing needed for Concrete Mounting)
  • Pure White Tempered Glass
  • Drive-Over Rated
  • Non-Slip Textured Surface
  • High Impact Rated / IK10
  • Custom Sizes Available

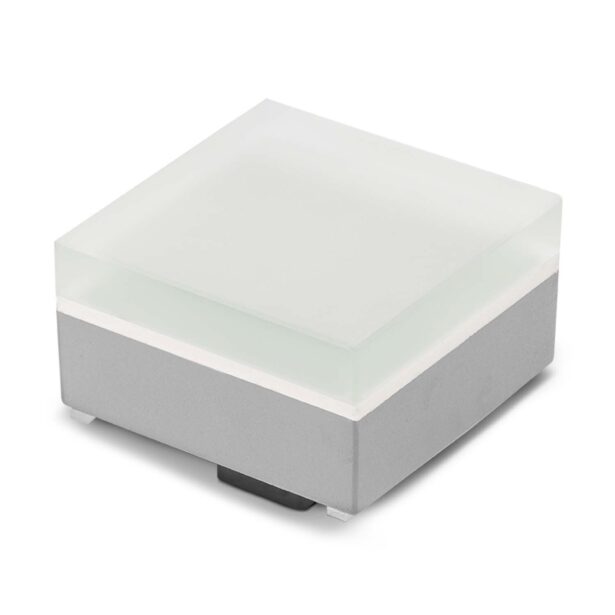

Pavex Square Fixture
Pavex Square Fixture
Pavex Square Fixture Lit
Pavex Square Housing Fixture
Pavex Square Housing Fixture Lit
Pavex square usecase hero 1500x1500

Downloads

Spec Sheet

Spec Sheet

Installation Instructions

Technical Specifications

Length* 4in × 4in, 4in × 8in, 6in × 6in, 8in × 8in, 12in × 12in
Color/Temperature* 2700K, 3000K, 3500K, 4000K, Red, Green, Blue
Input Voltage 24V DC/Constant Voltage
Lumens per watt 30 lm/W
CRI 80
IP Rating IP67
Impact Rating IK10
Drive-Over Rating 10,000 lbs
Finish Stainless Steel
Electrical Safety Classification UL 2108 Non-Class 2
Operating Temp. -13°F (-25°C) to 122°F (50°C)

* Customizable—Consult Factory

* Customizable—Consult Factory

Standards and Certifications

Light Source Specs

Pavex Square 4 × 4

Pavex Square Linear Square 4x4 LS Illustration
Unit Number
PVX-S-4×4
Length
3.94″ (100mm)
Width
3.94″ (100mm)
Height
3.11" (79mm)
Lumens
39 lm
Watts
1.3W

Pavex Square 4 × 8

Pavex Square Linear Square 4x8 LS Illustration
Pavex Square Linear Square 4x8 LS Illustration 2
Unit Number
PVX-S-4×8
Length
7.87″ (200mm)
Width
3.94″ (100mm)
Height
3.39″ (86mm)
Lumens
78 lm
Watts
2.6W

Pavex Square 6 × 6

Pavex Square Linear Square 6x6 LS Illustration
Unit Number
PVX-S-6×6
Length
5.91" (150mm)
Width
5.91" (150mm)
Height
3.39″ (86mm)
Lumens
39 lm
Watts
1.3W

Pavex Square 8 × 8

Pavex Square Linear Square 8x8 LS Illustration
Unit Number
PVX-S-8×8
Length
7.87" (200mm)
Width
7.87" (200mm)
Height
3.39″ (86mm)
Lumens
78 lm
Watts
2.6W

Pavex Square 12 × 12

Pavex Square Linear Square 12x12 LS Illustration
Unit Number
PVX-S-12×12
Length
11.81" (300mm)
Width
11.81" (300mm)
Height
3.39″ (86mm)
Lumens
180 lm
Watts
6W
