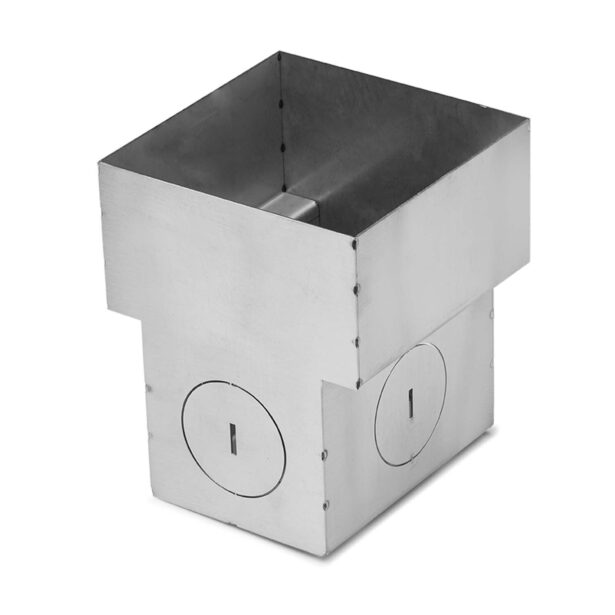

Pavex™ Square Housing
PVX-S Series | Housing Information for Pavex Square
With squares and rectangles in various sizes, Pavex Square is perfect for adding visual interest to pathways and other hardscape applications. NOTE: Pavex Lighting Source and Housing Sold Separately.
- Perfect for Pavers, Gravel, Soil, Decks, Etc. (Custom Housing needed for Concrete Mounting)
- Pure White Tempered Glass
- Drive-Over Rated
- Non-Slip Textured Surface
- High Impact Rated / IK10
- Custom Sizes Available
Downloads
Technical Specifications
| Length* | 4in × 4in, 4in × 8in, 6in × 6in, 8in × 8in, 12in × 12in |
| Finish | Stainless Steel |
* Customizable—Consult Factory
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
Note, using this product will require:
Pavex™ Square
1. Item
- PVX — Pavex
2. Shape
- S — Square/Rectangle
3. Component
- HSE — Housing
4. Dimensions*
- 4X4 — 4" × 4"
- 4X8 — 4" × 8"
- 6X6 — 6" × 6"
- 8X8 — 8" × 8"
- 12X12 — 12" × 12"
5. Depth
- S — Standard 5"
- C — Custom
6. Knockout
- K1 — 1 1/4" Knockout
7. Material
- SS — Stainless Steel
* Customizable—Consult Factory
Standards and Certifications
Housing Specs
Pavex Square 4 × 4
Length
4.13" (105mm)
Width
4.13" (105mm)
Height
5" (127mm)
Pavex Square 4 × 8
Length
8.07" (205mm)
Width
4.13" (105mm)
Height
5" (127mm)
Pavex Square 6 × 6
Length
6.10" (155mm)
Width
6.10" (155mm)
Height
5" (127mm)
Pavex Square 8 × 8
Length
8.07" (205mm)
Width
8.07" (205mm)
Height
5" (127mm)
Pavex Square 12 × 12
Length
11.81" (300mm)
Width
11.81" (300mm)
Height
5" (127mm)
