Eclipx Static White
Eclipx Series | Line Volt Articulating Cove Fixture
Eclipx is specifically designed for indoor cove lighting, accent lighting, and integrated architectural lighting.
- 120-277V AC
- 60° articulation in either direction, 10° increments with Pivot Clip
- Flicker-Free 0-10V Dimming down to 5%
- Daisy Chain Multiple Fixtures up to 80ft
Downloads
Technical Specifications

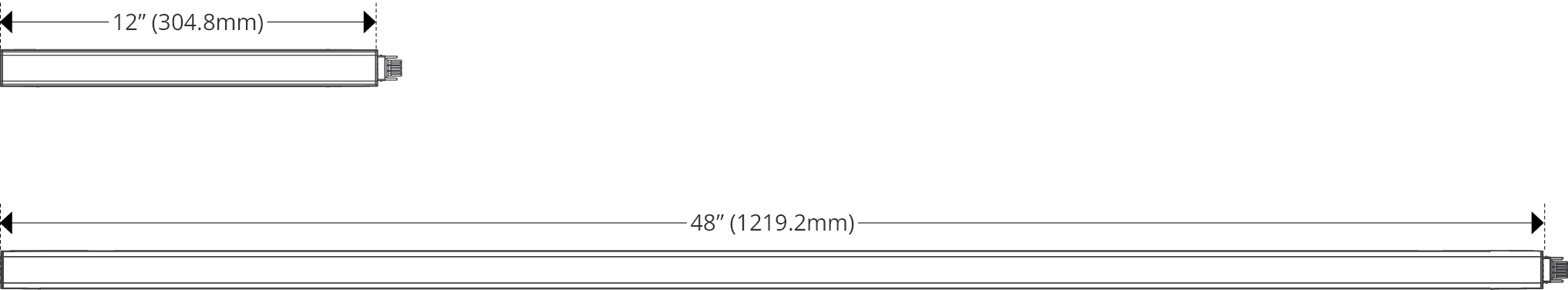

| Length | 12” (304.8mm), 48” (1219.2mm) |
| Color/Temperature | 2700K, 3000K, 3500K, 4000K |
| Dimming Protocol | 0-10V |
| Watts Per Foot | 6W |
| IP Rating | IP20 |
| Finish | White |
| Input Voltage | 120-277V AC |
| Lumens per Foot | 713-731 |
| Beam Angle | 103° |
| Max Run Length | 80ft |
| Operating Temp. | 30°F (-1°C) to 140°F (60°C) |
| Storage Temp. | 30°F (-1°C) to 113°F (45°C) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- ECX — Eclipx
2. Length
- 1 — 1 Foot
- 4 — 4 Foot
3. Wattage
- 6 — 6 Watts
4. Dimming
- Z — 0-10V
5. CCT
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
6. Input
- UNV — 120-277V
7. Lens
- FR — Frosted
Standards and Certifications
Optional Mounting Accessories
Eclipx Mounting Track

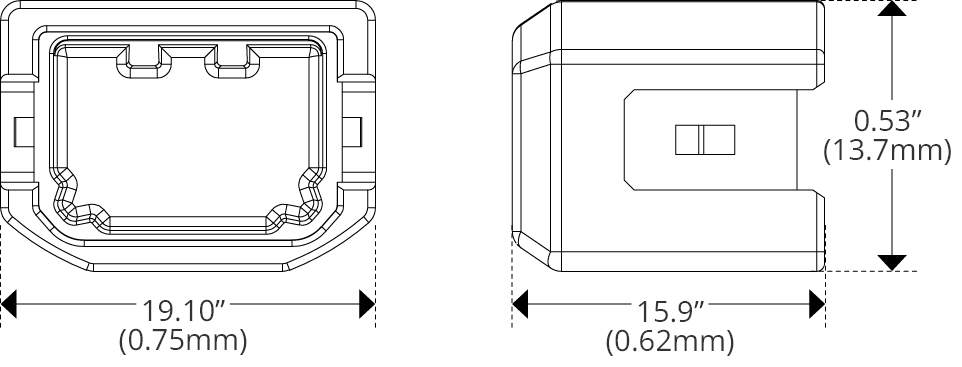

Eclipx Terminating End Cap

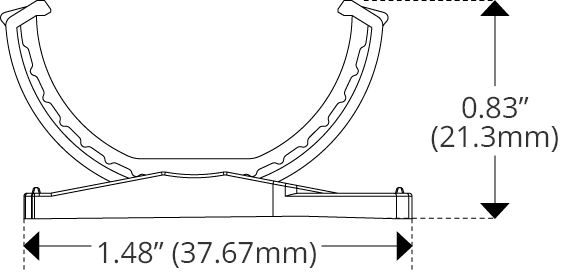

Eclipx Mounting Clips
1ft Fixture comes with 2x ECX-CM-MC, 4ft Fixture comes with 4x.
Optional Wiring Accessories

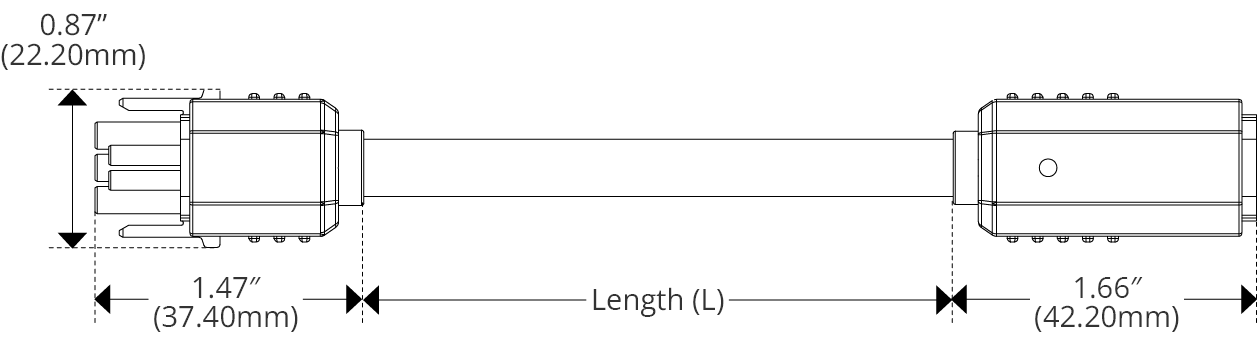

Eclipx Connector

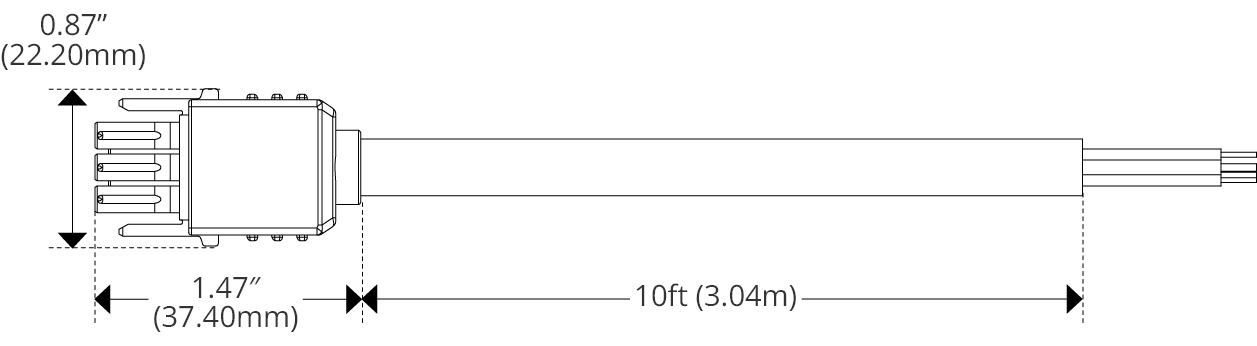

Eclipx Power Lead
