AC Zolo™ 7 RGBW Alternating

Z7AC Series | Color Changing Line Voltage Washer/Grazer

Download Spec Sheet Contact Us Add to Project

The AC Zolo 7 is the first line voltage option in our flagship grazing series. Available with a variety of optics, accessories, and color temperature options without the need for remote drivers. IP66 rated for Dry/Damp/Wet locations.

Store in a Temperature-Controlled Environment.

Product Features

120-277V Universal Input
High Purity Tempered Glass
Extruded Aluminum Alloy Housing
Available in Titanium Gray, Black, or White Finish*
Daisy Chain Multiple Fixtures
IP66 Outdoor Rated
Louver Options Available

*Customizable — Consult Factory

Downloads

Spec Sheet

Installation Instructions

Installation Instructions

Warranty

Warranty Info

Technical Specifications

Length	1ft, 2ft, 3ft, 4ft
Color/Temperature	2700K, 3000K, 3500K, 4000K
Dimming Protocol	DMX 512
Finish*	Titanium Gray, Black, White
Input Voltage	120–277V AC
Watts per Foot	15 W/ft
Lumen per Foot	555 lm/ft
Lumens per watt	37 lm/W

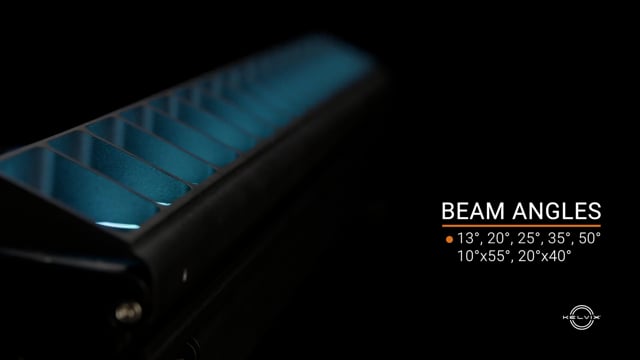

Optic	10° × 55°, 13°, 20°, 25°, 35°, 50°
Max Run Length	50ft at 120V AC
	80ft at 277V AC
CRI*	80
Operating Temp.	-40°F (-40°C) to 140°F (60°C)
Storage Temp.	-22°F (-30°C) to 140°F (60°C)

* Customizable—Consult Factory

Specify Your Product

Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.

Product Code:

Make a selection in each category to complete your product code.

1. Item

Z7AC — AC Zolo 7

2. Length

1 — 16.15" (410mm)
2 — 23.81" (605mm)
3 — 35.43" (900mm)
4 — 46.85" (1190mm)

3. Power

15 — 15 W/ft

4. Fixture Type

A — Alternating

5. Dimming

X — DMX

6. Color/Temp*

27 — 2700K
30 — 3000K
35 — 3500K
40 — 4000K

7. Optic

1055 — 10°×55°
13 — 13°
20 — 20°
25 — 25°
35 — 35°
50 — 50°

8. Mounting

S2 — 2" Stand Off
S3 — 3" Stand Off
GS — Ground Stake
L3 — L Bracket

9. Finish*

TG — Titanium Gray
BK — Black
WH — White

10. Option

NA — None
LV — Louver
ALV — Asymmetric Louver

* Customizable—Consult Factory

Standards and Certifications

Power/Connect Options

Power Lead

6ft

Z-7AC-FML-6

20ft

Z-7AC-FML-20

50ft

Z-7AC-FML-50

Connector

1ft

Z-7AC-FMC-1

2ft

Z-7AC-FMC-2

6ft

Z-7AC-FMC-6

T-Connector

Unit Number

Z-7AC-TCONNECTOR

DMX End Cap

Ac zolo 7 end line drawing

Unit Number

Z-7AC-END-DMX

Mounting Options

2" Stand Off

AC Zolo 7 2 Stand Off

Unit Number

Z-07-S2

Ordering Code

S2

Length

1.18" (30.0mm)

Width

2.36" (60.0mm)

Stand Off Height

1.87" (47.4mm)

Rotation

90°

3" Stand Off

AC Zolo 7 3 Stand Off

Unit Number

Z-07-S3

Ordering Code

S3

Length

1.18" (30.0mm)

Width

2.36" (60.0mm)

Stand Off Height

2.63" (66.9mm)

Rotation

105°

Ground Stake

AC Zolo 7 Ground Stake

Unit Number

Z-07-GS

Ordering Code

GS

Diameter

ø2.05″ (52.1mm)

Stand Off Height

9.64" (244.8mm)

Rotation

70°

L Bracket

AC Zolo 7 L Bracket

Unit Number

Z-07-L3

Ordering Code

L3

Foot Length

1.18" (30.0mm)

Foot Width

2.36" (60.0mm)

Stand Off Height

2.67" (67.9mm)

Louver Options

Louver

Zolo 7 Louver

Unit Number

Z-07-LV

Ordering Code

LV

Louver Width

2.14" (54.3mm)

Louver Height

0.79" (20.0mm)

Overall Height

1.34" (33.0mm)

Asymmetric Louver

Unit Number

Z-07-ALV

Ordering Code

ALV

Louver Width

2.14" (54.3mm)

Louver Height

0.79" (20.0mm)

Overall Height

1.34" (34.0mm)

Compatible Accessories

Junction Box

IP67 Water Rated Junction Box
