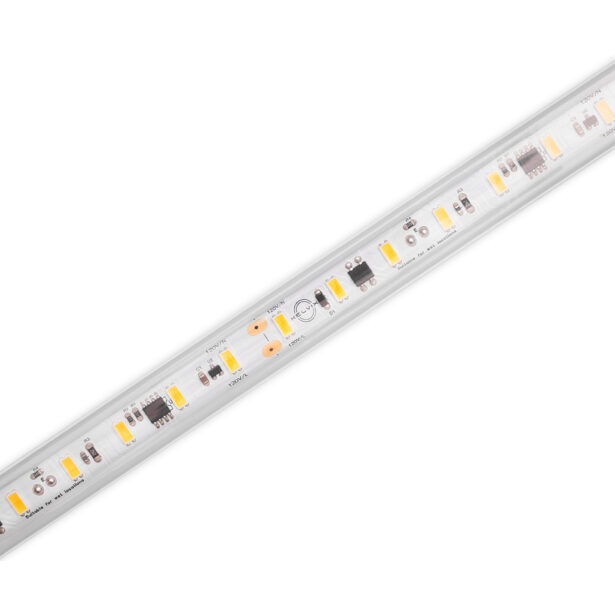

Orex™ Title 24 Edition

RXT Series | Line Voltage 120Hz Refresh Rate Linear LED

Boasting a refresh rate of 120Hz, OREX T-24 offers up to 300 lumens per foot. With a maximum run length of up to 100 feet and an IP65 rating, OREX T-24 is the perfect solution for both indoor and outdoor applications.

  • Supports Title 24 JA8-2019 Compliance
  • 120V Line Voltage
  • Integral AC/DC Rectifier
  • ELV Dimmable
  • Hardwire or Plug-in Installation
  • IP65
  • Refresh Rate of 120Hz
Orex Title 24 Alt web
Orex Title 24 Alt web
Orext24 curved 1500x1500 150x150
Orext24 curved lit 1500x1500px 150x150
Power Design Inc Campus 2

Downloads

Technical Specifications

Color/Temperature 2400K, 2700K, 3000K, 3500K, 4000K, 5000K
Dimming Protocol ELV
Indoor/Outdoor Indoor/Outdoor
Input Voltage 120V AC
Watts per Foot 4W
Beam Angle 120°
Max Run Length 100ft
CRI 90+
Operating Temperature -4°F (-20°C) to 104°F (40°C)
Cut Intervals 4" (101.6mm)
Tape Width 0.82" (20.8mm)
Tape Height 0.70" (17.8mm)
Diode 3056
Field Cuttable No
RXT-24K RXT-27K RXT-30K RXT-35K RXT-40K RXT-50K
Kelvin 2400K 2700K 3000K 3500K 4000K 5000K
Lumens per Foot 260 lm/ft 272 lm/ft 279 lm/ft 301 lm/ft 320 lm/ft 326 lm/ft
Lumens per Watt 65 lm/W 68 lm/W 69 lm/W 75 lm/W 80 lm/W 81 lm/W

Standards and Certifications

Mounting Options

Mounting Clips

Rxt clp f1 linedrawing
Rxt clp f1
Length
0.67″ (17mm)
Width
0.85″ (21.5mm)
Height
0.75″ (19mm)
Material
Polycarbonate

Plastic Mounting Base

Rxt ch pl linedrawing
Rxt ch pl
Length
78.74″ (2m)
Width
0.79″ (20mm)
Height
0.79″ (20mm)
Material
Polycarbonate

Power/Connect Products

Orex T24 Connector Dims

72" Hardwire Feed

Orex lead withorex 1520x450 1024x303
Unit Number
HW72

240" Hardwire Feed

Orex lead withorex 1520x450 1024x303
Unit Number
HW240

72" Plug-in Feed

Orex Title 24 Plug in Feed
Unit Number
PL72

144" Plug-in Feed

Orex Title 24 Plug in Feed
Unit Number
PL144

Jump Cables

Orex jumpcable withorex2 1520x450 1024x303
Orex jumpcabledimensions
Unit Number
RX-JP-LENGTH-UV
Length
6"
24"
48"

Compatible Accessories
