Uniform Field Connectors/Couplers

Only for Uniform Static White Indoor

Download Spec Sheet Contact Us Add to Project

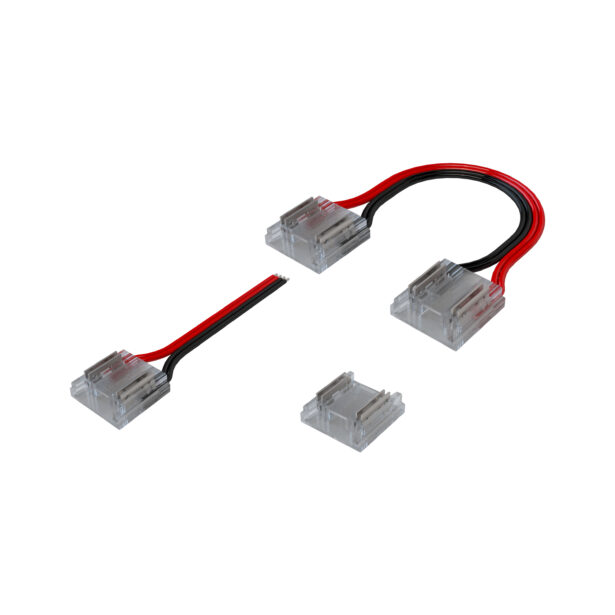

Connector and coupler accessories that enable field modification of Uniform Static White Indoor.

Wire Leads
Corner Connectors
Straight Couplers

Downloads

Spec Sheet

Technical Specifications

Input Voltage	24V DC
Operating Temp.	-4°F (-20°C) to 113°F (45°C)

	Wire Lead	Corner Connector	Straight Coupler
Unit Number	UNI-WL-I-WL12-6	UNI-WL-I-CC12-3I	UNI-WL-I-SC12
Feed Length	72.0" (1.82m)	2.83" (71.9mm)	N/A
Length	0.53" (13.6mm)	0.53" (13.6mm)	0.53" (13.6mm)
Width	0.54" (13.7mm)	0.54" (13.7mm)	0.54" (13.7mm)
Height	0.16" (4.2mm)	0.16" (4.2mm)	0.16" (4.2mm)
