UniCab™

UC Series | Universal Undercabinet Light

UniCab is a 120-277V under cabinet lighting system offering 0-10V dimming. This versatile fixture also includes a variable CCT selector, as well as an integrated hi/lo/off switch.


  • Supports Title 24 JA8-2019 Compliance
  • 120–277V
  • 0-10V Dimming
  • Variable CCT Switch (4000K, 3500K, and 3000K)
  • Integrated High/Low/Off Switch
  • Aluminum Housing
  • Protections: Short Circuit / Over Current / Over Voltage  / No load
  • Soft Start Power Supply Feature
  • 50,000 Hour Life
  • Fixtures Connect in Series (Coupler Included)

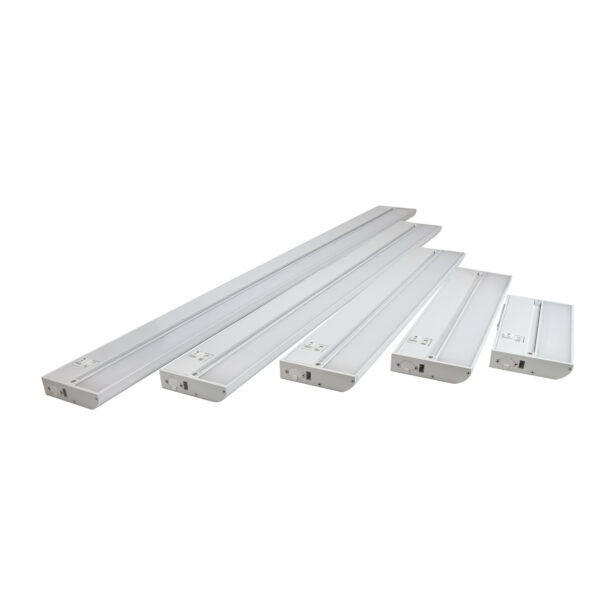

UNICAB Family HERO45deg 1500x1500
UNICAB Family HERO45deg 1500x1500
Unicab fammily straight 1500x1500
Unicab switch closeup 1500x1500
Unicab uc22 lit 1500x1500

Downloads

Technical Specifications

Length 9in, 14in, 22in, 32in, 40in
Color/Temperature 3000K, 3500K, 4000K Adjustable
Dimming Protocol 0-10V
Finish White
Input Voltage 120–277V AC
Beam Angle 120°
Max Run Length 75ft (at 120VAC)
CRI 90+
Operating Temp. -4°F (-20°C) to 122°F (50°C)
Driver Rated Input Voltage 120 – 277V AC
Driver Class 2
Driver 0-10V The dimming range is 100% V OUT to 5% V OUT. When V DIM is 8-10 VDC, the output voltage maintains 100% V OUT, and when VDIM is below 0.6 V, the output voltage is 5% V OUT.
Driver Protection Short Circuit. Power supply will recover automatically after fault conditions are removed.
Driver Safety Compliance ETL Listed. UL8750 Compliance to UL1310 Class 2, CSA-C22.2 No. 107.1
Driver EMC Compliance FCC Part 15B. Conducted Emission Test and Radiated Emission Test
UC9 UC14 UC22 UC32 UC40
Wattage 5W 8W 12W 15W 20W
Lumens 200 lm 360 lm 610 lm 810 lm 1060 lm
Length 9" 14" 22" 32" 40"
Lumens per Watt 40 lm/W 45 lm/W 50 lm/W 54 lm/W 53 lm/W
Driver Rated Output Power 8W 12W 16W 20W

Standards and Certifications

Power & Connect Options

Hardwire Box

Uc hw 1

Although UniCab fixtures can hardwire directly without a hardwire box, this item can be used to separate the power feed location from the fixture. When using the hardwire box, please note that a jumper set is required (specify length—sold separately).

Unit Number
UC-HW
Length
7" (177.8mm)
Width
2.75" (69.9mm)
Height
1" (25.4mm)

Jumper Sets

Uc jp6

Use when power will be provided by a standard grounded plug (120V only).

Unit Number
UC-JP-6-SET
UC-JP-24-SET
UC-JP-60-SET
Length
6"
24"
60"

Plug-In Power Feed

Uc plg 24

Connects UniCab fixtures to Hardwire Box,or allows for fixture separation when multiple fixtures are connected in series.

Unit Number
UC-PLG-60
