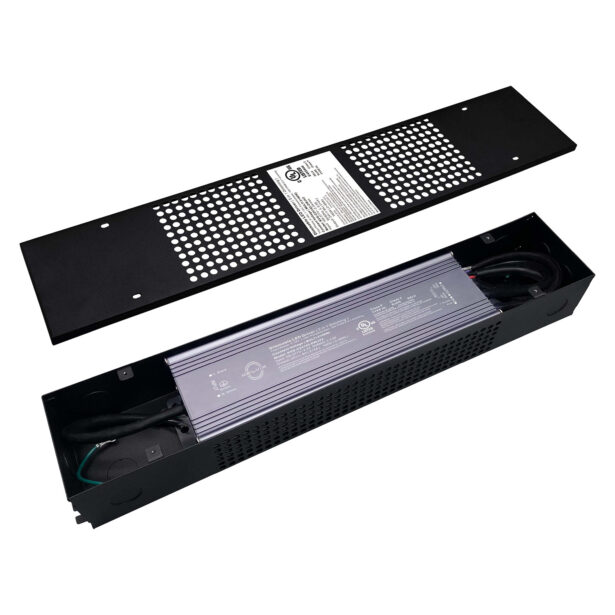

ULV192-SC
192 Watt(2 × 96W)–24 Volt | Class 2 Power Supply
The ULV192-SC is a 2 x 96W versatile constant voltage power supply designed for a broad range of indoor lighting applications. Featuring protective measures and a design for consistent performance, the ULV192-SC sets the standard for durability and adaptability. UL-listed as Class 2 and suitable for Dry and Damp locations, it delivers reliable illumination in various indoor settings
Product Features
- Flicker-free Dimming Down to ≤1%
- TRIAC, ELV, MLV, or 0–10V Dimming
- Protections: Short Circuit/Over Current/Over Voltage
- Free Air Convection Cooling
- Suitable for Dry/Damp Location
- UL-Listed Class 2
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | ULV192-SC |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 192W (2 × 96W) |
| Temp Range | -40°F(-40°C) – 140°F (60°C) |
| Dimensions | 10.94" × 3.99" × 1.65" |
| Classification | Class 2 |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. ULV192
- ULV192 — ULV192
2. SC
- SC — SC
Standards and Certifications
