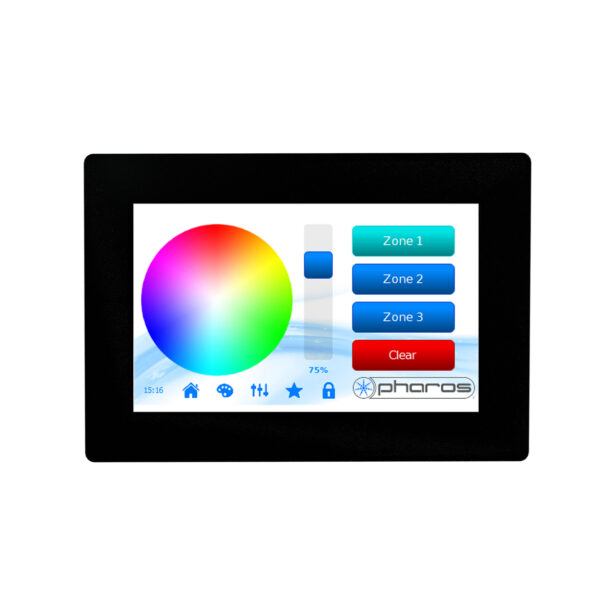

Pharos TPS 5
Upgrade your lighting control system with the new Pharos TPS 5—an elegant touch panel with a customizable 5" capacitive touch screen and seamless glass design that enhances your touch experience. Compatible with any Pharos Designer Controller, the TPS 5 also boasts improved core functionality, touch performance, screen resolution, and a universal mounting solution for easy installation.
- Touch Interface
- Customizable
- Easy Install
- Scalable
Downloads
Technical Specifications
| Series | CM-PTS5 |
| Input Voltage | 9V DC–48V DC, PoE (4W typical) |
| Control Outputs | Dependant on connected controller |
| Triggering & Integration | Dependant on connected controller |
| Inputs | Ethernet |
| Max Devices | 40 Pharos Designer controllers |
| Data Storage | Removable MicroSD Card (supplied) |
| Length | 5.51" (139.9mm) |
| Width | 3.81" (96.7mm) |
| Height | 1.11" (28.2mm) |
| Physical Build | Wall Mounted |
| IP Rating | IP40 |
| Temperature | 32°F (0°C) to 122°F (50°C) |
| Humidity | 10–95% relative, non-condensing |
Pharos Resources
Required software to control Pharos products.
Download Pharos Designer 2 Software
Wiring diagrams for all Pharos Designer products, and a range of Pharos Designer controller combinations.
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- CM — Component
- PTS5 — Pharos TPS 5
- POE — POE
- IW — In Wall
- BB — Black
- WW — White
Standards and Certifications
