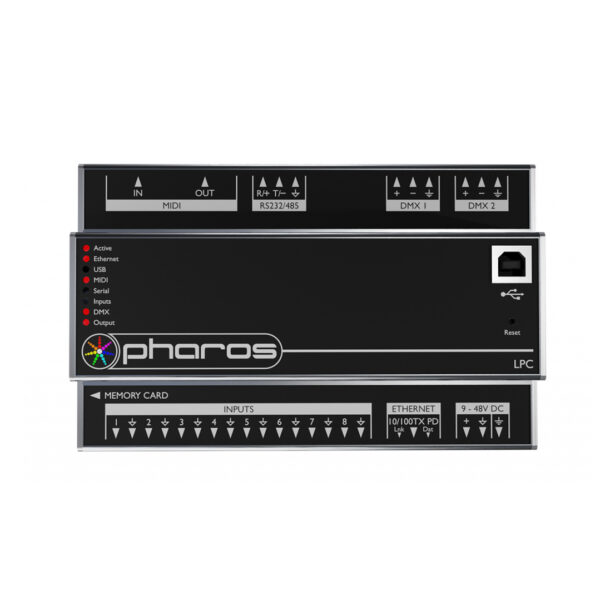

Pharos LPC
DMX512/eDMX Controller
Pharos’s LPC is a reliable, solid-state DMX512 and eDMX controller with a large focus on systems integration and triggering.
- Remote Management with Pharos Cloud
- Scalable
- Flexible Outputs
- Custom User Interfaces
Downloads
Technical Specifications
| Series | DMXC-PLxx |
| Input Voltage | 9V DC–48V DC, PoE (4W typical) |
| Control Outputs | DMX512, eDMX |
| Triggering & Integration | Contact Closure, Digital, Analog |
| Inputs | Ethernet, DMX512, Serial |
| Max Devices | 40 Pharos Designer Controllers |
| Data Storage | Removable SD Card (supplied) |
| Length | 5.65" (143.5mm) |
| Width | 3.54" (89.9mm) |
| Height | 2.28" (57.9mm) |
| Physical Build | 8 Unit Wide DIN Rail Mount |
| IP Rating | IP40 |
| Temperature | 32°F (0°C) to 122°F (50°C) |
| Humidity | 10-50% relative, non-condensing |
Pharos Resources
Required software to control Pharos products.
Download Pharos Designer 2 Software
Wiring diagrams for all Pharos Designer products, and a range of Pharos Designer controller combinations.
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- DMXC — DMX Control
2. Model
- PL1 — Pharos LPC 1
- PL2 — Pharos LPC 2
- PL4 — Pharos LPC 4
3. Input Voltage
- MV — DC/POE
4. Mounting
- DIN — DIN Rail
5. Finish
- S — Silver
Standards and Certifications
