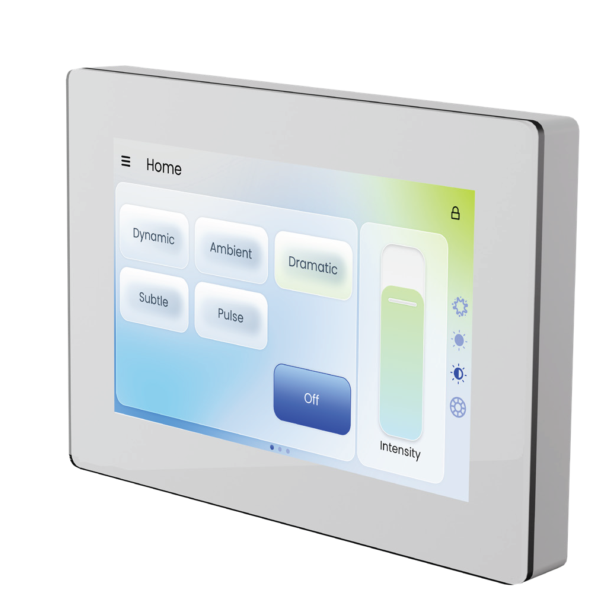

Pharos Express Touch
Elegant wall station with seamless, uninterrupted glass front plate. This touchscreen receives automatically generated pages via Express Control based on programming in the Express Software. Easily control your lighting by activating scenes and adjusting intensity for each Space. Included is a Universal Mounting Plate which is compatible with world-wide back boxes for easy installation.
- Touch Interface
- Customizable
- Easy Install
Downloads
Technical Specifications
| Series | Pharos |
| Input Voltage | PoE (IEEE802.3af, Class 0), 7W Typical |
| Inputs | Ethernet |
| Control Outputs | Dependant on Connected Controller |
| Data Storage | Micro SD Card Included |

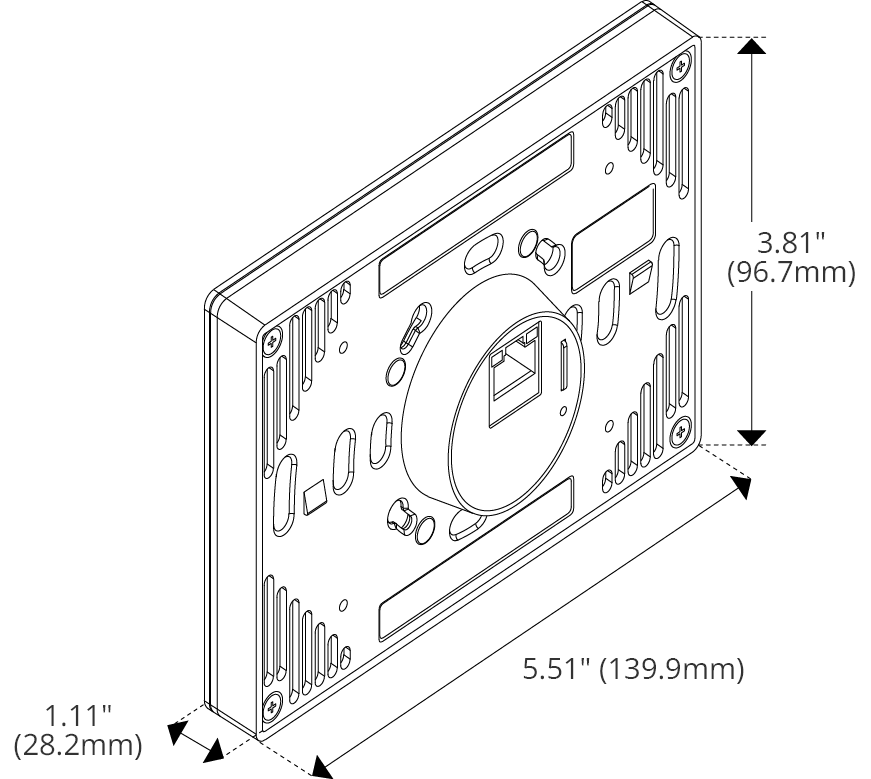

| Length | 5.51" (139.9mm) |
| Width | 3.81" (96.7mm) |
| Height | 1.11" (28.2mm) |
| Mounting | Wall Mounting |
| IP Rating | IP40 |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Humidity | 10–90% Relative, Non-Condensing |
Pharos Resources
Required software to control Pharos products.
Download Pharos Designer 2 Software
Wiring diagrams for all Pharos Designer products, and a range of Pharos Designer controller combinations.
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- CM — DMX Control
- PTX5 — Express Touch 5
- POE — POE
- IW — In-Wall
- B — Black
- White — White
Standards and Certifications
