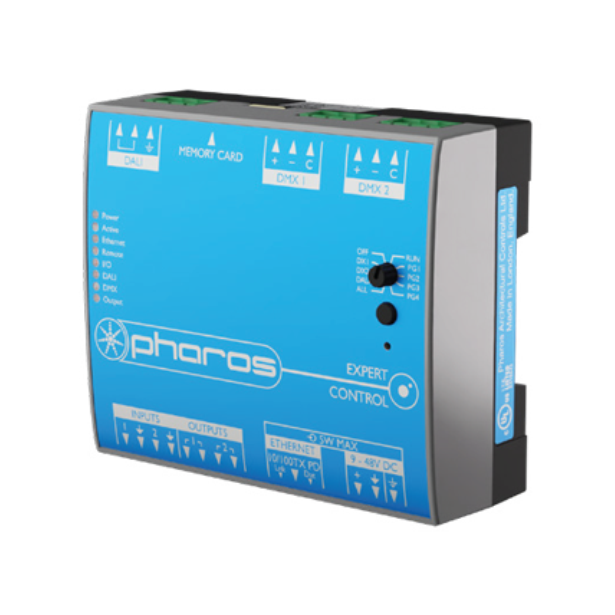

Pharos Express Control
DMX 512 / eDMX and Dali Controller
Pharos Express Control is a set-and-forget DMX and Dali controller that is easy to specify and install. The free Express App Interface is available for user control on any smart device over local Wi-Fi.
- Remote Management with Pharos Cloud
- Flexible Outputs
- Custom User Interfaces
- Optional Mobile App Interfaces
Downloads
Technical Specifications
| Series | Pharos |
| Input Voltage | 9 - 48V DC, PoE (4W Typical) |
| Inputs | DMX, DALI, Ethernet, Contact Closure |
| Control Outputs | DMX, DALI, eDMX |
| Data Storage | Micro SD Card Included |

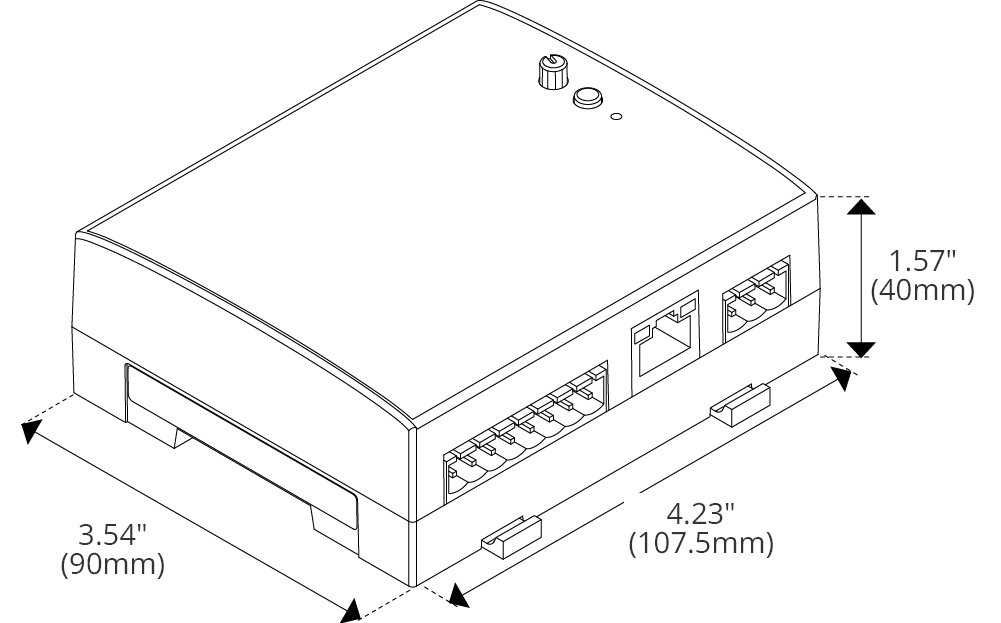

| Length | 4.23" (107.5mm) |
| Width | 3.54" (90mm) |
| Height | 1.57" (40mm) |
| Mounting | 6 Unit Wide Din Rail Mount |
| IP Rating | IP40 |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Humidity | 10–90% Relative, Non-Condensing |
Pharos Resources
Required software to control Pharos products.
Download Pharos Designer 2 Software
Wiring diagrams for all Pharos Designer products, and a range of Pharos Designer controller combinations.
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- DMXC — DMX Control
2. Model
- PX1 — Express Control 1
- PX2 — Express Control 2
- PX4 — Express Control 4
- PX6 — Express Control 6
3. Mounting
- DIN — DIN Rail
4. Input
- MV — DC/POE
5. Finish
- B — Blue
Standards and Certifications
