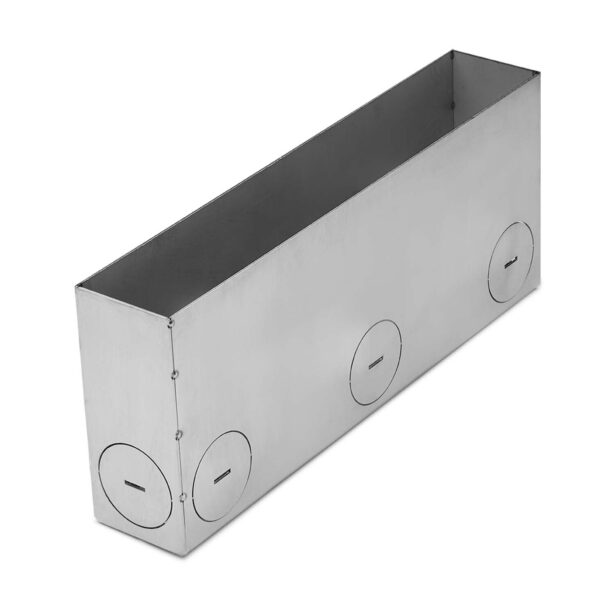

Pavex™ Linear Housing
PVX-L Series | Housing Information for Pavex Linear
Pavex Linear is a highly customizable linear in-ground fixture. Enabling lines and angles of illumination to be added to a variety of hardscape applications. NOTE: Pavex Lighting Source and Housing Sold Separately.
- Perfect for Pavers, Gravel, Soil, Decks, Etc. (Custom Housing needed for Concrete Mounting)
- Pure White Tempered Glass
- Drive-Over Rated
- Non-Slip Textured Surface
- High Impact Rated / IK10
- Custom Sizes Available
Downloads
Technical Specifications
| Length* | 12in × 2in, 24in × 2in, 36in × 2in, 48in × 2in, 12in × 4in, 24in × 4in , 36in × 4in, 48in × 4in |
| Finish | Stainless Steel |
* Customizable—Consult Factory
Specify Your Product
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
Make a selection in each category to complete your product code.
Note, using this product will require:
Pavex™ Linear
1. Item
- PVX — Pavex
2. Shape
- L — Linear
3. Component
- HSE — Housing
4. Dimensions*
- 12X2 — 12" × 2"
- 24X2 — 24" × 2"
- 36X2 — 36" × 2"
- 48X2 — 48" × 2"
- 12X4 — 12" × 4"
- 24X4 — 24" × 4"
- 36X4 — 36" × 4"
- 48X4 — 48" × 4"
5. Depth
- S — Standard 5"
- C — Custom
6. Knockout
- K1 — 1 1/4" Knockout
7. Material
- SS — Stainless Steel
* Customizable—Consult Factory
Standards and Certifications
Housing Specs
Pavex Linear 12 × 2
Length
12.01" (305mm)
Width
2.17″ (55mm)
Height
5" (127mm)
Pavex Linear 24 × 2
Length
23.82" (605mm)
Width
2.17″ (55mm)
Height
5" (127mm)
Pavex Linear 36 × 2
Length
35.63" (905mm)
Width
2.17″ (55mm)
Height
5" (127mm)
Pavex Linear 48 × 2
Length
47.44" (1205mm)
Width
2.17″ (55mm)
Height
5" (127mm)
Pavex Linear 12 × 4
Length
12" (305mm)
Width
4.13" (105mm)
Height
5" (127mm)
Pavex Linear 24 × 4
Length
23.82" (605mm)
Width
4.13" (105mm)
Height
5" (127mm)
Pavex Linear 36 × 4
Length
35.63" (905mm)
Width
4.13" (105mm)
Height
5" (127mm)
Pavex Linear 48 × 4
Length
47.44" (1205mm)
Width
4.13" (105mm)
Height
5" (127mm)
