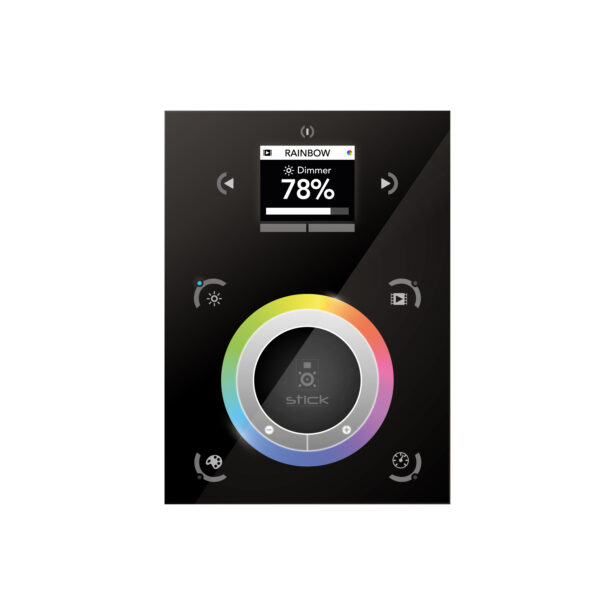

Nicolaudie Stick DE3
Glass Touch Panel DMX512/eDMX Controller
The DMXC Stick DE3 is designed to meet the demands of even the most complex projects while maintaining an intuitive and user-friendly interface. With easy programming capabilities from a PC, Mac, Android, iPad, or iPhone using the downloadable software, you can customize lighting levels, color schemes, and effects to suit your unique vision with unparalleled ease.
- Touch Interface
- Stand Alone
- Up to 10 Zone of DMX Control
- Touch Color/Dimmer/Speed Wheel
Downloads
Spec Sheet
Spec SheetWarranty
Technical Specifications
| Series | DMXC-N1 |
| Input Voltage | 5–15V DC |
| Control Outputs | DMX512 |
| Control Inputs | Dry Contact, RS232, TCP |
| Data Storage | Removable MicroSD Card (supplied) |
| Length | 4.17" (105.9mm) |
| Width | 5.75" (149.0mm) |
| Height | 0.43" (10.9mm) |
| Physical Build | Wall Mounted |
| IP Rating | IP20 |
| Operating Temperature | 14°F (-10°C) to 113°F (45°C) |
| Storage Temperature | 14°F (-10°C) to 113°F (45°C) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- DMXC — DMX Controller
2. Model
- N1 — Stick DE3
3. Input Voltage
- 6V — 6V DC
4. Mounting
- IW — In Wall
5. Finish
- B — Black
- W — White
Standards and Certifications
