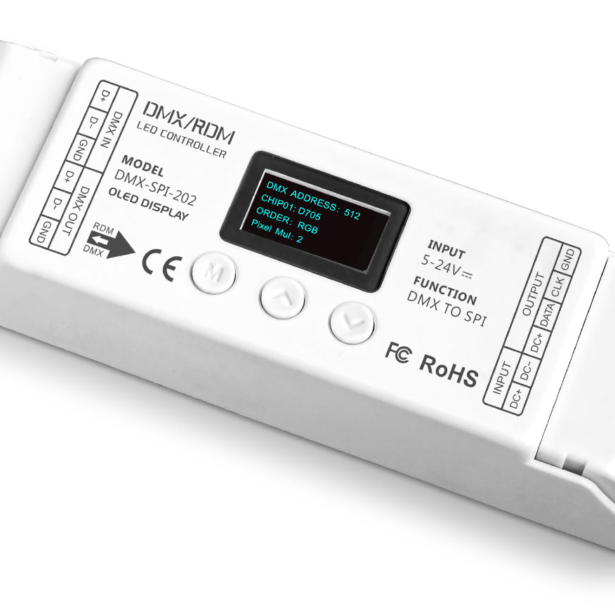

DMX to SPI Pixel Decoder
DMXD-SPI-2202-I
- O-LED Display for Setting Adjustment and Monitoring
- Selectable IC type for use with a variety of Digital Pixel SPI Products
- Standard DMX512 Communication
- Supports Remote Addressing via RDM Protocol
- Pre-built Test Scenes for “Self-Testing”
Downloads
Spec Sheet
Spec SheetWarranty
Technical Specifications
| Series | DMX |
| Input Voltage | 5-24V DC |
| Output Signal | SPI |
| Constant Voltage | Yes |

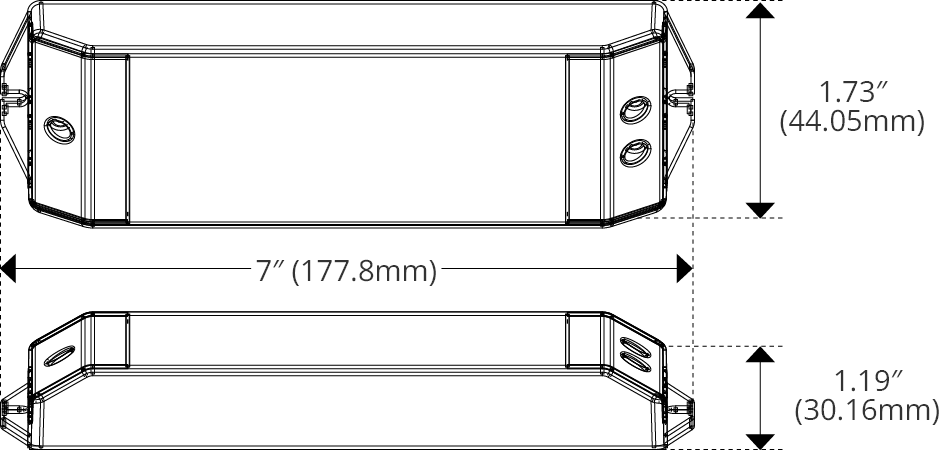

| Length | 7.0in (177.8mm) |
| Width | 1.73in (44.05mm) |
| Height | 1.19in (30.16mm) |
| IP Rating | IP20 |
| Operating Temperature | 14°F (-10°C) to 113°F (45°C) |
| Indoor/Outdoor | Indoor |
| Input Protocol | DMX512 |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. DMXD
- DMXD — DMXD
2. SPI
- SPI — SPI
3. 2202
- 2202 — 2202
4. I
- I — I
Standards and Certifications
