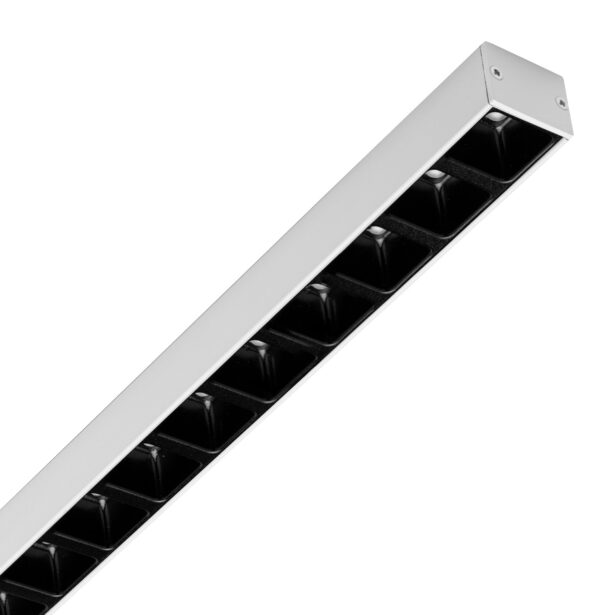

CrossBar™ Black Louver

CBBK Series | High Contrast Parabolic Louver T-Grid Fixture

Download Spec Sheet Contact Us Add to Project

Crossbar provides seamless illumination upon either axis of a drop ceiling system, requiring no modifications to an existing T-grid. Delivering a high-quality light source that is both uniform and direct view, the simplicity of Crossbar along with its universal dimming capability makes it a top choice for a variety of commercial environments.

High Contrast Parabolic Louver
Easily Mounts to Existing Grid
Fast Installation
Integrated Seismic Strap
UL Listed
50,000 Hour Life
For Use with 24V Power Supplies

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

Technical Specifications

Length	2ft, 4ft
Temperature/Color	2700K, 3000K, 3500K, 4000K
Dimming Protocol	PWM, 0-10V, DMX 512, DALI, MLV, ELV
Finish	White
Input Voltage	24V DC
Watts per Foot	13W for 2ft, 26W for 4ft
Lumen per Foot	1100 lm for 2ft, 2200 lm for 4ft
Lumens per watt	84 lm/W
Beam Angle	75°
Max Run Length	12ft
CRI	90+
Operating Temp.	-20°F (-29°C) to 158°F (70°C)

Specify Your Product

Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.

Product Code:

Make a selection in each category to complete your product code.

1. Item
