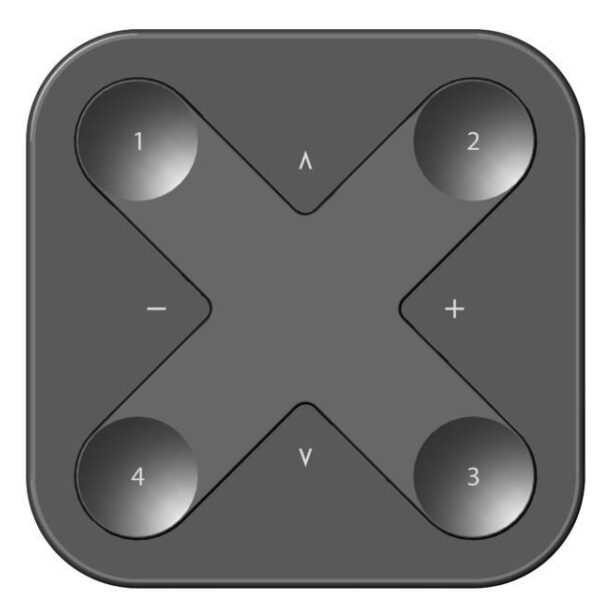

Xpress LR
Versatile
Xpress-LR is a wireless user interface that brings huge flexibility to interior design as furniture can be replaced and walls can be rebuilt without having to take the wiring of switches or switch placement into account. It can be kept wherever the user needs it.
Highly customizable
The Xpress-LR gives direct access to all the important Casambi lighting control functionalities. The preset buttons of Xpress can be configured via the Casambi App.
Long Range Mode
There are three radio modes: ‘Balanced’, ‘Better Performance’ and now ‘Long Range’ options. Long-range capabilities can reach approx. 200 meters (650 feet) with a good line of sight connection between nodes.
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Input Voltage | 3VDC (Battery Powered) |
| Battery Type | CR2430 Lithium Coin Cell |
| Control Input/Output | Casambi Wireless Mesh via App |
| Operating Frequencies | 2.402 - 2.480 Ghz |
| Length | 3.54in (90mm) |
| Height | 3.54in (90mm) |
| Width | 0.47in (12mm) |
| IP Rating | IP20 |
| Operating Temperature | +32°F - +104°F |
| Storage Temperature | -13°F - +158°F |
| Maximum Relative Humidity | 0 - 80% Non-condensed |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- Xpress-LR — Xpress-LR
- B — Black
- W — White
