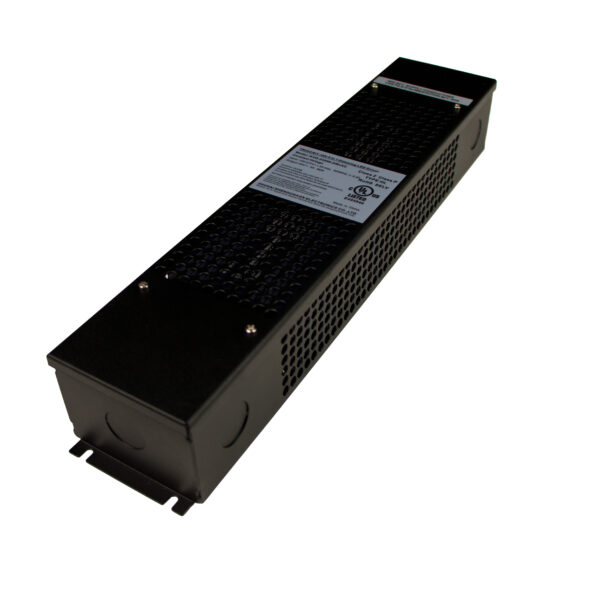

ULV96-SC
96 watt–24 volt | class 2 power supply
Illuminate indoor spaces with confidence using the ULV96-SC, a versatile 96W constant voltage LED power supply designed to adapt seamlessly to various dimming systems. Ensuring reliable operation with built-in protective measures, this power supply embraces a robust design for efficient performance. UL-listed as Class 2 and suitable for Dry and Damp locations, it offers a reliable and adaptable solution for your indoor lighting needs.
Product Features
- Universal Dimming: ELV, MLV, Triac, DMX, or 0–10V
- Overload Protection/Auto Reset Short Circuit Protection
- Free Air Convection Cooling
- Suitable for Dry/Damp Location
- UL-listed Class 2
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | ULV96-SC |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 96W |
| Temp Range | -20°F(-29°C) – 158°F (70°C) |
| Dimensions | 14.96" × 3.03" × 2.24" |
| Classification | Class 2 |
Your Product Code
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
1. ULV96
- ULV96 — ULV96
2. SC
- SC — SC
Standards and Certifications
