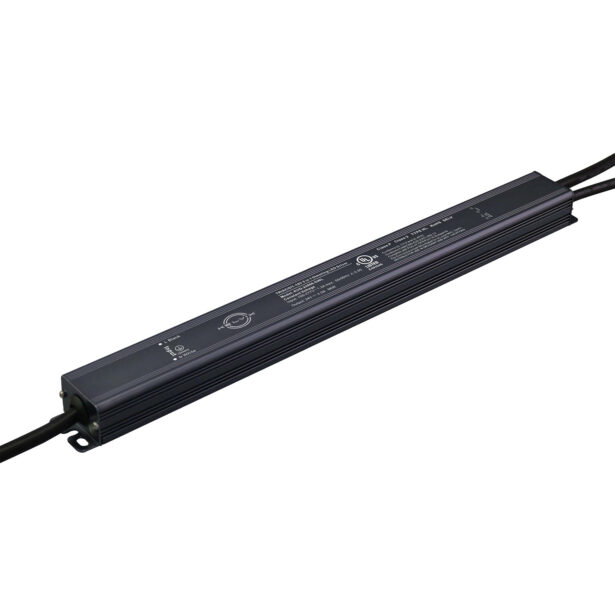

HLV96-SLIM
96 watt–24 volt | class 2 power supply
Illuminate indoor spaces with confidence using the HLV96-SLIM, a slim, versatile 96W constant voltage LED power supply designed to adapt seamlessly to various dimming systems. Ensuring reliable operation with built-in protective measures, this power supply embraces a robust design for efficient performance. UL-listed as Class 2 and suitable for Dry, Damp and Wet locations, it offers a reliable and adaptable solution for your indoor/outdoor lighting needs.
Product Features
- Flicker-free Dimming Down to ≤1%
- TRIAC, ELV, MLV, or 1–10V Dimming
- Protections: Short Circuit/Over Current/Over Voltage
- Free Air Convection Cooling
- Suitable for Dry/Damp/Wet Location
- UL-listed Class 2
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | HLV96-SLIM |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 96W |
| Temp Range | -20°F(-29°C) – 158°F (70°C) |
| Dimensions | 13.02" × 1.26" × 0.91" |
| Classification | Class 2 |
Your Product Code
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
Product Code:
1. HLV96
- HLV96 — HLV96
2. SLIM
- SLIM — SLIM
Standards and Certifications
