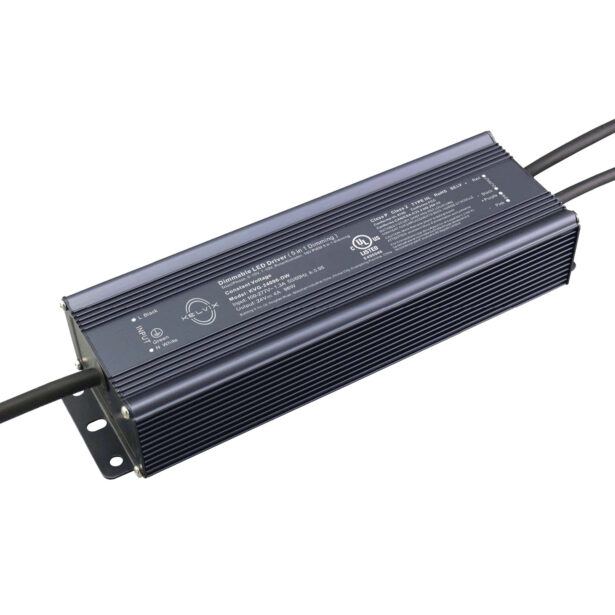

HLV96-SC
Light up outdoor spaces with resilience using the HLV96-SC, a 96W constant voltage LED power supply designed to thrive in diverse environmental conditions. With wide dimming compatibility catering to various systems, this power supply provides a versatile solution for outdoor applications. Featuring protective measures and a design for consistent performance, the HLV96-SC sets the standard for durability and adaptability. UL-listed as Class 2 and suitable for Dry, Damp, and Wet locations, it delivers reliable illumination in various outdoor settings.
Product Features
- Universal Dimming: ELV, MLV, Triac, DMX, or 0–10V down to ≤1%
- Overload Protection/Auto Reset Short Circuit Protection
- Free Air Convection Cooling
Suitable for Dry, Damp, and Wet Location
- UL-listed Class 2
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | HLV96-SC |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 96W |
| Temp Range | -20°F(-29°C) – 158°F (70°C) |
| Dimensions | 14.96" × 3.03" × 2.24" |
| Classification | Class 2 |
Your Product Code
Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.
- HLV96 — HLV96
- SC — SC
Standards and Certifications
