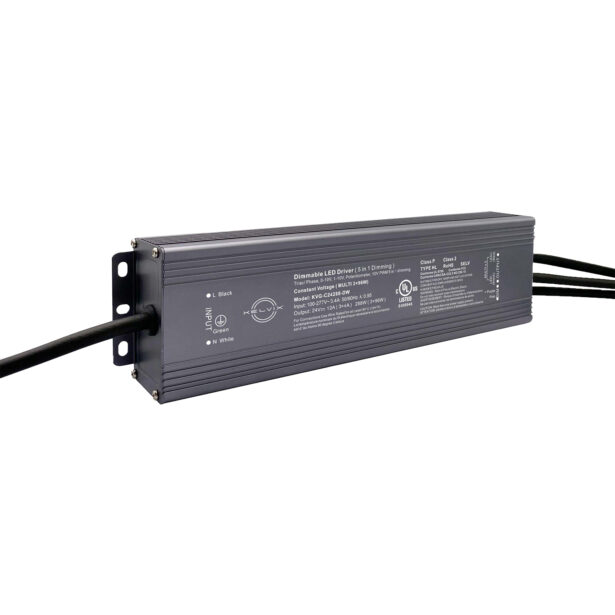

HLV192-SC
Light up outdoor spaces with resilience using the HLV192-SC, a 2 x 96W constant voltage LED power supply designed to thrive in diverse environmental conditions. With wide dimming compatibility catering to various systems, this power supply provides a versatile solution for outdoor applications. Featuring protective measures and a design for consistent performance, the HLV192-SC sets the standard for durability and adaptability. UL-listed as Class 2 and suitable for Dry, Damp, and Wet locations, it delivers reliable illumination in various outdoor settings.
Product Features
- Flicker-free Dimming Down to ≤1%
- TRIAC, ELV, MLV, or 1–10V Dimming
- Protections: Short Circuit/Over Current/Over Voltage
- Free Air Convection Cooling
- UL-listed Class 2
- Suitable for Dry/Damp/Wet Location
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Series | HLV192-SC |
| Input Voltage | 100–277V AC |
| Output Voltage | 24V DC / Constant Voltage |
| Max Wattage | 192W (2 × 96W) |
| Temp Range | -40°F(-40°C) – 140°F (60°C) |
| Dimensions | 10.87" × 3.05" × 1.79" |
| Classification | Class 2 |
| Enclosure | IP66 |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
- HLV192 — HLV192
- SC — SC
Standards and Certifications
