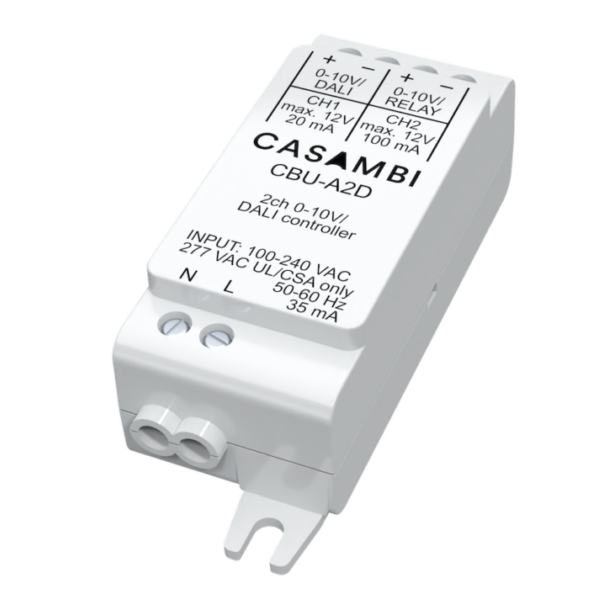

CBU-A2D
Casambi Dual Channel 0-10V/DALI Dimming Module
CBU-A2D is a Bluetooth-controllable, Casambi-enabled 0-10V/DALI controller. The product offers flexible configuration options, including dual-channel 0–10V analog control or single-channel DALI digital control.
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Input Voltage Range | 100-240 VAC, 277 VAC (UL/CSA only) |
| Control Input | Casambi Wireless Mesh via App |
| Control Output | 0-10V or Dali (configurable in App) |
| Operating Frequencies | 2.402 - 2.480 Ghz |
| Length | 3.0in (76.2mm) |
| Height | 1.02in (25.9mm) |
| Width | 0.91in (23mm) |
| IP Rating | IP20 |
| Ambient Temperature | -4°F - +113°F |
| Storage Temperature | -13°F - +158°F |
| Maximum Case Temperature | +158°F |
| Maximum Relative Humidity | 0 - 80% Non-condensed |
