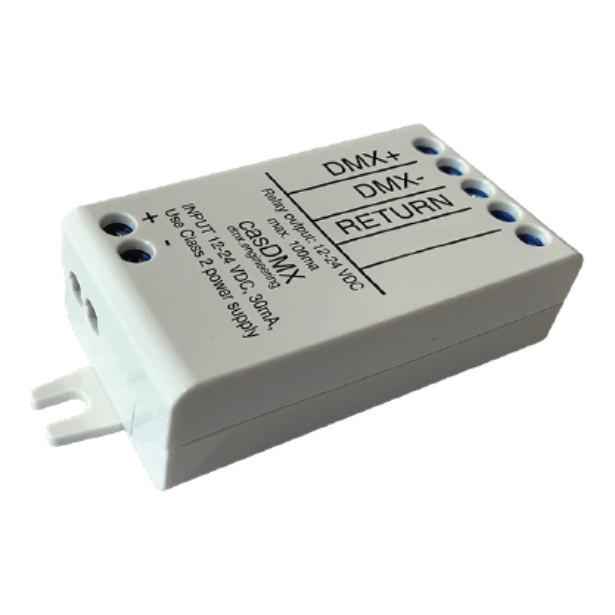

casDMX
Casambi 8 Channel DMX Output Module
casDMX is a Bluetooth controllable, Casambi enabled, eight channel DMX-512 master dimmer. It drives one DMX-512 universe, connecting to DMX enabled lighting devices and fixtures.
Downloads
Spec Sheet
Spec SheetTechnical Specifications
| Input Voltage Range | 12 - 24 VDC |
| Control Input | Casambi Wireless Mesh via App |
| Control Output | DMX-512 (maximum of 8 channels) |
| Operating Frequencies | 2.402 - 2.480 Ghz |
| Length | 2.85in (72.6mm) |
| Height | 1.18in (30mm) |
| Width | 0.70in (18mm) |
| IP Rating | IP20 |
| Ambient Temperature | -4°F - +113°F |
| Storage Temperature | -13°F - +167°F |
| Maximum Case Temperature | +167°F |
| Maximum Relative Humidity | 0 - 80% Non-condensed |
