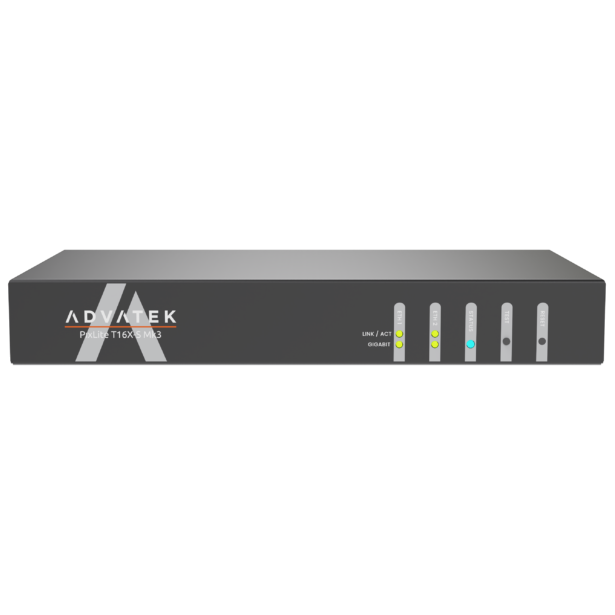

Advatek PixLite T16X-S MK3
Long-Range Pixel Data Transmitter
The TX-T16XMK3 is an advanced long-range pixel LED controller designed for reliability and user-friendliness. Capable of transmitting 96 universes of data up to 984ft, it’s perfect for professional installations with long-distance pixel setups. Must be paired with the Advatek R1F / R2F receiver.
- Send Pixel Data up to 984ft (300m)
- Up to 96 Universes of Art-Net or sACN
- Over 50+ Pixel Protocols Supported
- Configure Using Advatek Assistant 3 Software
Downloads
Technical Specifications
| Series | TX |
| Input Voltage | 100–240V AC |
| Control Outputs | SPI (must be used with R1F or R2F) |
| Triggering & Integration | Dependent on connected controller |
| Inputs | Ethernet, DMX512, Serial |
| Max Devices | Unlimited/Dependent on Controller outputs |
| Pixel Protocols | 50+ |
| Max Distance | 984ft (300m) |
| Data Storage | Micro SD Card |
| Length | 11.1" (282.0mm) |
| Width | 6.70" (169.0mm) |
| Height | 1.70" (42.0mm) |
| Physical Build | Wall Mount, 1U Rack Mount Single |
| Operating Temperature | 14F (-10 °C) to 140F (60 °C) |
| Storage Temperature | 14F (-10 °C) to 140F (60 °C) |
Advatek Resources
Required software to control Advatek products.
Download Advatek Assistant 3 Software
Additional Advatek documentations.
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. TX
- TX — TX
2. T16XMK3
- T16XMK3 — T16XMK3
3. XMTR
- XMTR — XMTR
4. ETH
- ETH — ETH
5. B
- B — B
