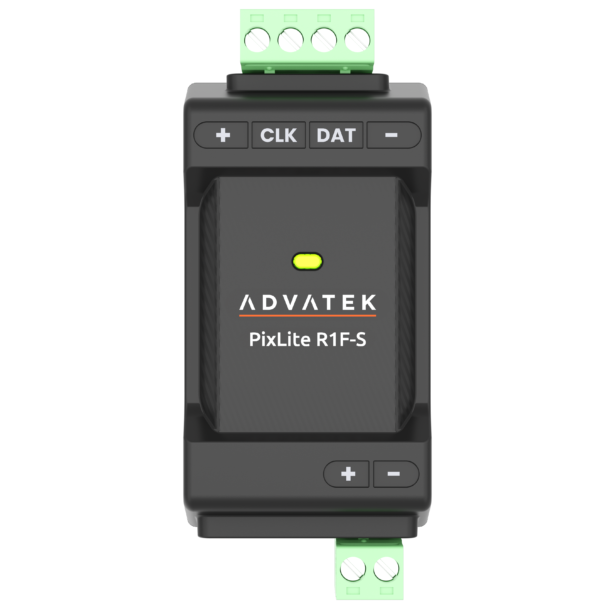

Advatek PixLite R1F-S
Long-Range Pixel Data Receiver
The durable and secure TX-R1F pixel LED receiver is designed for seamless integration with the TX-T16XMK3 for long-distance data transmission. With its slimline form factor and ease of use, create stunning, professional-grade light shows over extended distances effortlessly. Must be paired with the Advatek T16X-S MK3 transmitter.
- Receive Pixel Data up to 984ft (300m)
- Compact and Slim Design
- Over 50+ Pixel Protocols Supported
- 10A Protection Per Output
Downloads
Technical Specifications
| Series | TX-R1F |
| Input Voltage | 5–48V DC |
| Control Outputs | SPI |
| Per Output Current Limit | 10A |
| Total Current Limit | 10A |
| Interfacing Input | Single RJ45 Input (from T16X-S MK3) |
| Max Devices | Unlimited, Up to 16 Receivers Per Transmitter |
| Pixel Protocols | 50+ |
| Length | 2.83" (72.0mm) |
| Width | 1.53" (39.0mm) |
| Height | 1.22" (31.0mm) |
| Mounting Options | Surface Mount, DIN Rail, Tube Mount |
| Operating Temperature | -4F (-20 °C) to 131F (55 °C) |
| Storage Temperature | -4F (-20 °C) to 131F (55 °C) |
Advatek Resources
Required software to control Advatek products.
Download Advatek Assistant 3 Software
Additional Advatek documentations.
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. TX
- TX — TX
2. R1F
- R1F — R1F
3. RCV
- RCV — RCV
4. SPI
- SPI — SPI
5. B
- B — B
Standards and Certifications
