Signwave® 3 (Indoor/Outdoor)

SW3 Series | Narrow Viewing Angle Flexible Lighting System

SignWave 3 is the only series offered with Horizontal or Vertical bending options. The perfectly flat top of SignWave 3 provides greatly reduced side-viewing angles and concentrates the incredibly bright illumination onto a single direct-view surface.


  • Dimmable
  • 50,000 Hour Life
  • Flat Profile for Streamline Projects
  • Horizontal or Vertical Bending Option
  • IP67 or IP68 Option
  • UL-Listed for Indoor and Outdoor Use
  • Factory-Installed Power Feed
  • For Use with 24V Power Supplies
Signwave 3 Hero web
Signwave 3 Hero web
Signwave 3 Lit Red web
Signwave 3 Family web
video
Signwave 3 nest
Signwave 3 application

Downloads

Technical Specifications

Color/Temperature 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, Red, Green, Blue, Amber, RGBW, Color Tuning (2200-5700K)
Dimming Protocol PWM, TRIAC, 0-10V, DMX 512
Indoor/Outdoor Indoor/Outdoor
Input Voltage 24V DC
Optic 160°
CRI 80+
Operating Temp. -4°F (-20°C) to 113°F (45°C)
Lumens per Foot 162 lm/ft (White Light)
Lumens per watt 43 lm/W (White Light)
Viewing Angle Narrow
Life Expectancy 50,000 Hour Life

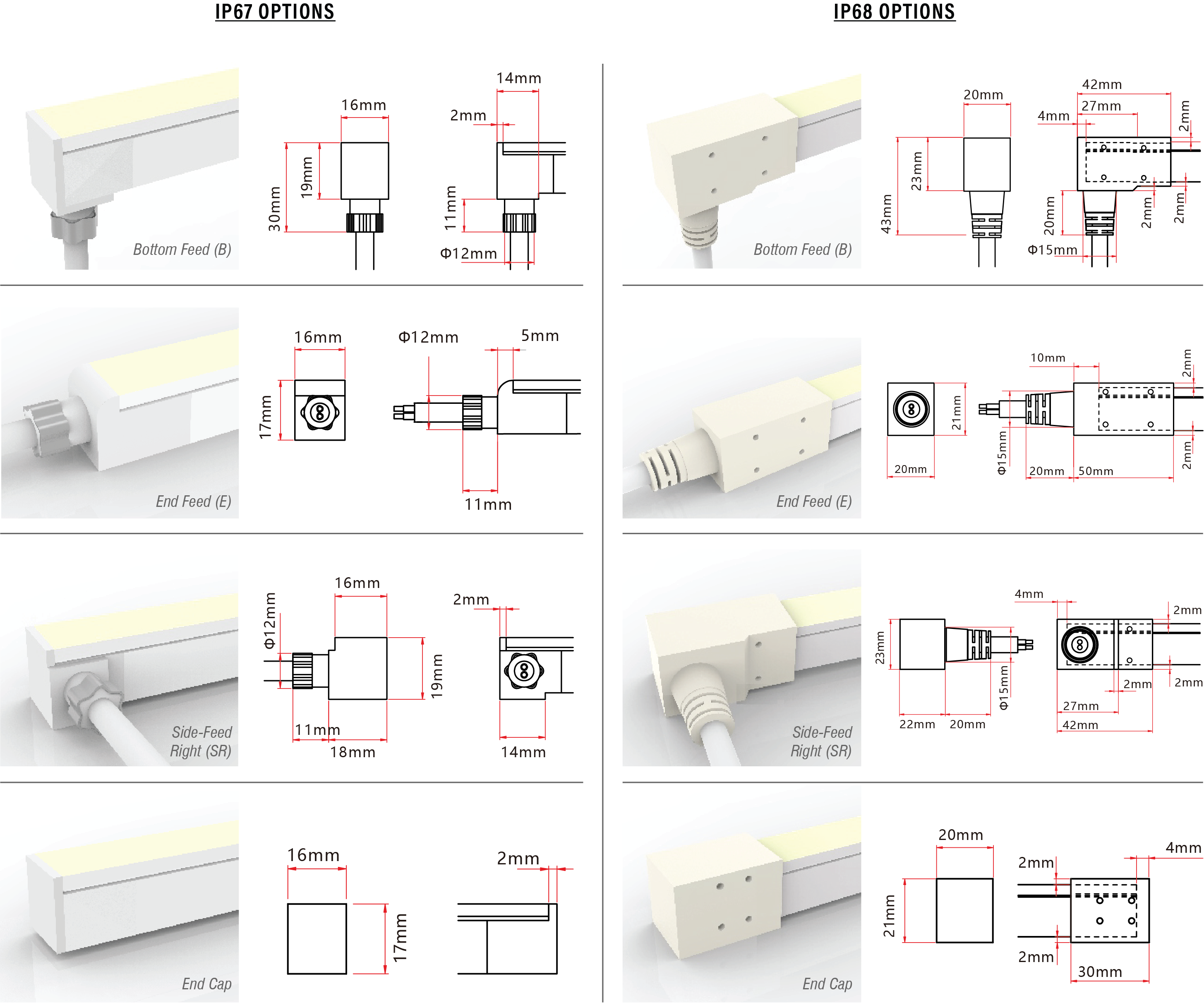

Feed Orientation Bottom Feed, End Feed, Side-Feed Right, Side-Feed Left
Bend Direction Horizontal, Vertical
Bend Radius 11.81" (300mm)
White Light Red Green Blue Amber RGBW Color Tuning (2200K-5700K)
Wavelength N/A 620 - 630 nm 520 - 530 nm 465 - 475 nm 585 - 595 nm N/A N/A
Wattage per Foot 3.7 W/ft 2.2 W/ft 3.7 W/ft 3.7 W/ft 2.2 W/ft 4.6 W/ft 3.7 W/ft
Max Run Length 26ft 39ft 26ft 26ft 39ft 21ft 26ft
Production Intervals 2.19” (56.6mm) 3.25” (83.3mm) 2.19” (56.6mm) 2.19” (56.6mm) 3.25” (83.3mm) 3.25” (83.3mm) 3.25” (83.3mm)

* Customizable—Consult Factory

Standards and Certifications

Related Projects

Mounting

Aluminum Serrated Channel

Sw k al ch sr image
Sw k al sr line drawing
Length
78.75" (2m)
Width
0.80" (20.2mm)
Internal Width
0.64" (16.3mm)
Height
0.82" (20.8mm)
Material
Aluminum

Aluminum Serrated Clip

Sw k clp al sr image
Sw k al sr line drawing
Length
0.79" (20mm)
Width
0.80" (20.2mm)
Internal Width
0.64" (16.3mm)
Height
0.82" (20.8mm)
Material
Aluminum

Aluminum Serrated Flex Channel

Sw k ch al flx image
Sw k al sr line drawing
Length
39.30" (1m)
Width
0.80" (20.2mm)
Internal Width
0.64" (16.3mm)
Height
0.82" (20.8mm)
Material
Aluminum

Side Mounting Bracket

Sw clp ra image
Sw clp ra line drawing
Length
0.79" (20mm)
Width
0.98" (25mm)
Height
2.75" (70mm)
Material
Aluminum
