Cor™ 4

CRT4 Series | Modular Linear LED

Download Spec Sheet Contact Us Add to Project

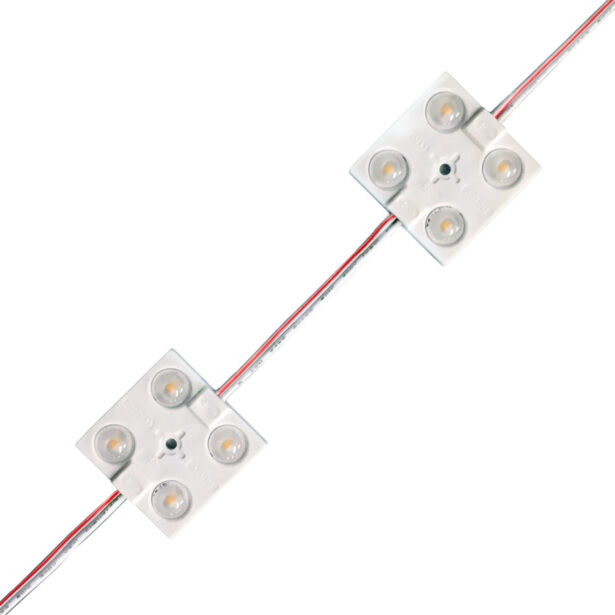

Cor™ 4 is quad-diode module system with an enormously wide range of applications. This product can illuminate radius coves, display panels or even signage.

90+ CRI
Dimmable
50,000 Hour Life
ABS Plastic Construction
Modular, Field-Configurable Design
UL-Listed for Indoor and Outdoor Use
For Use with 24V Power Supplies

Downloads

Spec Sheet

Installation Instructions

Installation Instructions

Warranty

Warranty Info

Additional Files

Technical Specifications

Color/Temperature	3000K
Dimming Protocol	PWM, TRIAC, 0-10V, DMX 512
Indoor/Outdoor	Indoor/Outdoor
Input Voltage	24V DC
Watts per Foot	4.4W
Beam Angle	160°
Max Run Length	21ft
CRI	90+
Operating Temperature	-40°F (-40°C) to 149°F (65°C)
Tape Width	1.438 (36.5mm)
Tape Height	0.188 (4.7mm)
Diode	2835
Life Expectancy	50,000 Hour Life
Field Cuttable	No
Lumens per Foot	260 lm
Lumens per Watt	59 lm/W

Specify Your Product

Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.

Product Code:

Make a selection in each category to complete your product code.

1. Item
